High-Temperature Dual-Phase Titanium Alloy Spherical Powder for Sal...

High-Temperature Dual-Phase Titanium Alloy Spherical Powder

Reference: HM2866

Condition: New product

High-Temperature Dual-Phase Titanium Alloy Spherical Powder offers exceptional strength, crack resistance, and high-temperature stability, making it ideal for nuclear energy and marine applications. With superior printability and corrosion resistance, it ensures high-density, defect-free additive manufacturing.

More details

Inquiry

Particle Size	0-25 μm, 15-53 μm, 45-105 μm, 50-150 μm, or customized
Materials	Ti-Al-Zr-Mo-Ni Titanium Alloy

High-Temperature Dual-Phase Titanium Alloy Spherical Powder is a Ti-Al-Zr-Mo-Ni-based α+β titanium alloy, it offers exceptional mechanical strength, crack resistance, and thermal stability, maintaining a tensile strength of 964–987 MPa at room temperature and 503–517 MPa at 350°C. With superior corrosion and oxidation resistance, it performs well in harsh environments, including salt spray and high-temperature conditions. Engineered for additive manufacturing, it features high sphericity, controlled particle size (15–53 μm), and low oxygen content (<0.1%), ensuring smooth powder flow, high-density printing, and excellent post-processing compatibility. Heeger Materials provides high-quality High-Temperature Dual-Phase Titanium Alloy Spherical Powder to meet demanding industrial needs.

Ti-Al-Zr-Mo-Ni Titanium Alloy Spherical Powder Specifications

Particle Size Range D90	59-63 μm
Particle Size Range D50	23-40 μm
Particle Size Range D10	18-23 μm
Flowability	≤38 s/50 g
Bulk Density	≥2.5 g/cm³
Tapped Density	≥2.7 g/cm³

Ti-Al-Zr-Mo-Ni Titanium Alloy Mechanical Properties

Temperature (°C)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation after Fracture (%)	Reduction of Area (%)
Room Temperature	≥964	≥907	≥12.5	≥42
100	≥867	≥774	≥15.5	≥54
350	≥503	≥390	≥17	≥73

Ti-Al-Zr-Mo-Ni Titanium Alloy Spherical Powder VS. Traditional Alloys

Property	Ti-Al-Zr-Mo-Ni	Ti-6Al-4V	Ti65	Ti-5553
High-Temperature Performance	Strength at 350°C is ~20% higher (~420 MPa) with better ductility	Lower strength at 350°C (~420 MPa)	Excels above 500°C	Lower strength and ductility at <400°C
AM Compatibility	Low oxygen content (<0.1%) minimizes printing defects	Moderate oxygen content	Moderate oxygen content	Higher defect rates during printing
Temperature Range	Balanced strength-ductility below 400°C	Less effective at higher temperatures	Excels above 500°C	Focused on specific applications
Print Quality	High density (>99.9%) and excellent crack resistance	Good print density	Good at higher temperatures	Lower density and more crack-prone

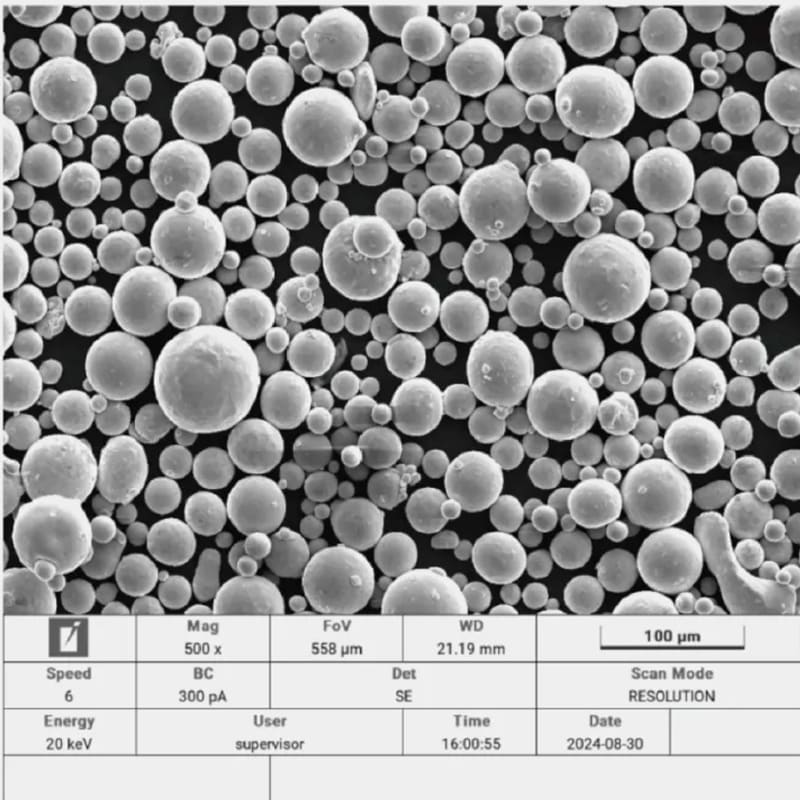

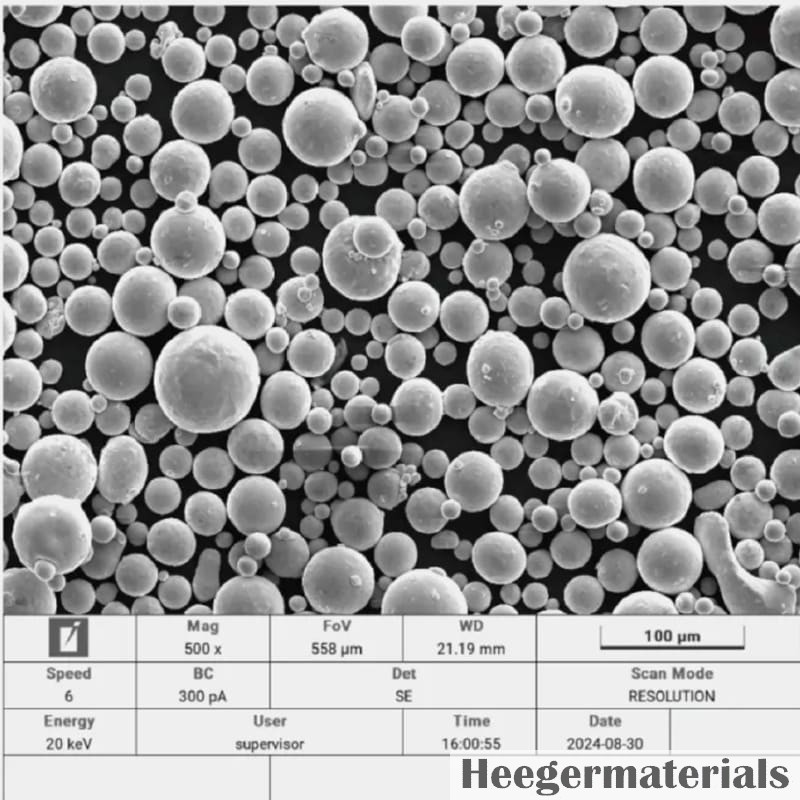

Ti-Al-Zr-Mo-Ni Titanium Alloy Spherical Powder SEM

Dual-Phase Titanium Alloy Spherical Powder SEM

Ti-Al-Zr-Mo-Ni Titanium Alloy Spherical Powder Key Advantages

AM-Optimized: Designed for Selective Laser Melting (SLM) and other additive manufacturing techniques.
Superior Morphology: High sphericity and controlled particle size (15–53 μm) ensure smooth flow and recoating.
Crack-Free Microstructure: Rapid solidification ensures high density and structural integrity.
Post-Processing Ready: Compatible with aging and HIP treatments for enhanced performance.
High Strength & Stability: α+β dual-phase design balances toughness, strength, and heat resistance.

Ti-Al-Zr-Mo-Ni Titanium Alloy Spherical Powder Applications

Aerospace Components: Used in compressor blades and structural brackets, offering a 15% weight reduction compared to traditional forged parts while maintaining high strength and durability under extreme conditions.
Marine Engineering: Applied in deep-sea pressure hulls and structural components, enabling thinner walls while maintaining strength at depths of up to 11,000 meters, as well as in corrosion-resistant scrubber nozzles with extended service life in harsh marine environments.
Nuclear Energy Systems: Ideal for high-temperature reactor components and piping, ensuring stable performance at 350°C with excellent oxidation and radiation resistance.
Hydrogen Storage & Fuel Cells: Used in hydrogen storage tanks with ultra-low permeability, supporting over 100,000 charge-discharge cycles while maintaining structural integrity.
High-Performance Industrial Equipment: Suitable for wear-resistant and high-temperature applications in chemical processing, thermal protection systems, and advanced manufacturing, enhancing reliability in demanding environments.
