Platinum

New

View larger

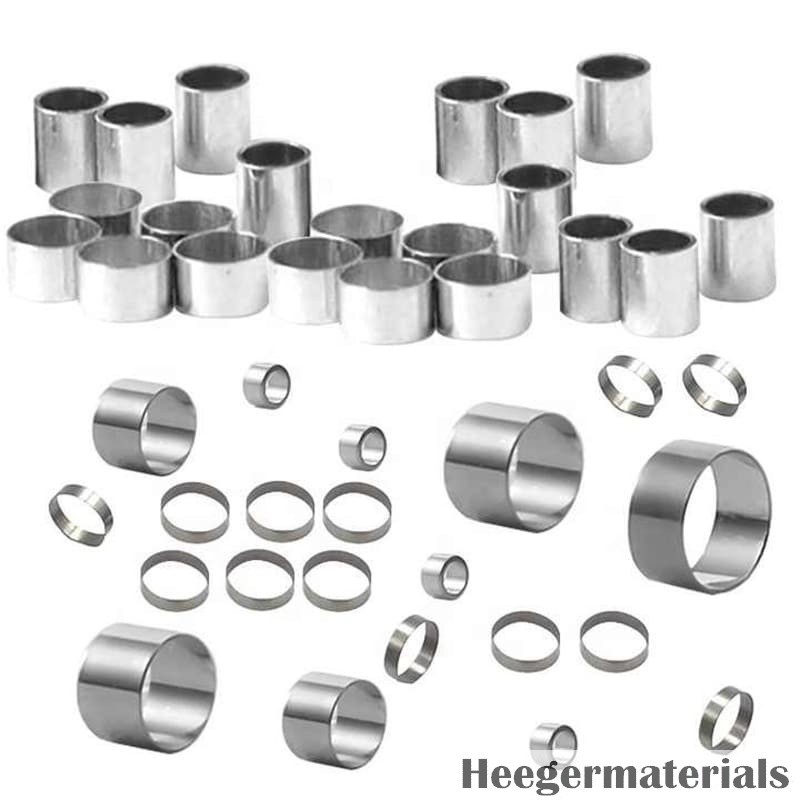

Platinum Iridium Marker Band

Reference: HM3087

Condition: New product

Platinum Iridium Marker Band is made from a biocompatible platinum-iridium alloy, typically PtIr10, offering excellent stability and radiopacity. It is widely used in minimally invasive medical procedures as an X-ray imaging marker. HM is a professional supplier and manufacturer of high-quality Platinum Iridium Marker Band, offering customized solutions and competitive prices.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Density	21.56 g/cm3
Materials	PtIr5, PtIr10, PtIr15, PtIr20, PtIr25
Appearance	metallic silver
Purity	99.95%-99.99%
Size	Outer Diameter: φ0.2-φ50 mm, or customized

More info

Platinum Iridium Marker Band is manufactured from a platinum-iridium alloy, commonly with a PtIr10 composition, known for its outstanding chemical stability, biocompatibility, and radiopacity. It is widely used in catheter-based and other minimally invasive medical procedures to precisely mark the working area under X-ray imaging without causing additional damage to human tissue. This marker band provides reliable performance in demanding clinical environments and supports accurate device positioning during interventional treatments. Heeger Materials provides high-precision Platinum Iridium Marker Bands in various sizes and custom specifications for medical and research applications.

Platinum Iridium Marker Band

Platinum Iridium Marker Band Specifications

Material:	PtIr5, PtIr10, PtIr15, PtIr20, PtIr25
Purity:	99.95% – 99.99%
Density:	21.56 g/cm3
Size:	Outer Diameter: φ0.2-φ50 mm, or customized
Wall Thickness:	0.015-0.5 mm, or customized
Precision:	±0.001 mm
Temper:	Annealed or Unannealed

Platinum Iridium Marker Band Properties

Type	Melting Point (℃)	Density (g/cm³)	HV (Soft State)	HV (Hard State)	Tensile Strength (MPa)	Electrical Resistivity (µΩ·cm) at 20℃
Pt-Ir5%	1790	21.49	90	140	274	19.0
Pt-Ir10%	1800	21.53	130	230	382	24.5
Pt-Ir20%	1840	21.81	200	300	539	32.0
Pt-Ir25%	1840	21.72	200	300	238	33.0

PtIr vs Ta Marker Band Performance Comparison

Property	PtIr Marker Band	Ta Marker Band
Material Density	High (~21.5 g/cm³), excellent radiopacity	Moderately high (~16.6 g/cm³), slightly less radiopaque than platinum iridium
Biocompatibility	Excellent, widely used in implants, non-toxic, resistant to bodily fluids	Good, suitable for implants, but slightly less resistant to long-term exposure
Corrosion Resistance	Exceptional, resistant to strong acids, alkalis, and high temperatures	Good, but less resistant in extreme chemical environments
Mechanical Strength	High, wear-resistant, ideal for high-stress medical applications	Moderate, slightly lower strength, requires careful handling to avoid deformation
Machinability	Challenging, requires specialized equipment, and high-cost processing	Easier, lower processing costs than platinum iridium
Cost	Higher, due to precious metals (platinum and iridium)	Lower, tantalum is more cost-effective
Primary Applications	High-end vascular interventions (e.g., coronary stents), neuro-interventions, and implant positioning	Standard vascular catheters, stent markers, diagnostic catheters

Platinum Iridium Marker Band Advantages

High Radiopacity: Clearly visible under X-ray or fluoroscopic imaging, allowing precise device positioning.
Excellent Biocompatibility: Safe for long-term contact with human tissue, minimizing risk during procedures.
Chemical Stability: Resists corrosion in bodily fluids and harsh sterilization processes.
Mechanical Strength: Maintains shape and integrity during device assembly and operation.
Minimal Tissue Impact: Does not cause damage or irritation to surrounding tissue during use.
Customizable Dimensions: Available in various sizes and designs to meet specific device requirements.

Platinum Iridium Marker Band Applications

Minimally Invasive Surgery: Used to mark the working area on catheters and guidewires for precise navigation under fluoroscopy.
Interventional Cardiology: Integrated into stents, balloon catheters, and other cardiovascular devices to aid accurate placement.
Neurovascular Procedures: Supports real-time imaging and positioning of microcatheters during delicate brain interventions.
Peripheral Vascular Devices: Applied in devices for treating peripheral artery disease, ensuring accurate deployment.
Medical Device Prototyping: Used in research and development for testing visibility and placement accuracy in imaging systems.

Platinum Iridium Marker Band Packing

The Platinum Iridium Marker Band will be carefully placed in wooden cases or cartons, with additional support from soft materials, to prevent shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.

Platinum Iridium Marker Band Packing

Where to Buy Platinum Iridium Marker Band in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Platinum (Pt) products including Platinum Iridium Marker Band, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We are a specialized supplier of premium-grade metals, alloys, ceramics, powders, and various other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
