High-Precision Tantalum Marker Bands for Interventional Medical Devices

Tantalum Marker Bands (also known as radiopaque marker rings) are critical components used in minimally invasive surgeries, ensuring that surgeons can precisely track catheters and stents under fluoroscopy or X-ray imaging.

Due to its incredibly high density (16.6 g/cm³) and superior radiopacity, unalloyed Tantalum (Ta) has become the material of choice for modern implantable medical devices. It offers outstanding biocompatibility and corrosion resistance, serving as a highly cost-effective and functionally equivalent alternative to traditional, high-cost Platinum-Iridium (Pt-Ir) marker rings.

Dimensional Capabilities & Precision Tolerances

At Heeger Materials, we utilize advanced seamless tube drawing and micro-cutting technologies to guarantee defect-free marker bands. Every batch is rigorously inspected under high magnification to ensure no scratches, deformations, hydrogen embrittlement, or burrs (no skin needling).

• Outer Diameter (OD) Range: 0.2 mm to 8.0 mm

• OD Tolerance: Up to ±0.003 mm

• Wall Thickness Range: 0.015 mm to 0.5 mm

• Wall Thickness Tolerance: Up to ±0.005 mm

• Length Tolerance: Up to ±0.05 mm

• (Note: Customized dimensions beyond these ranges are available upon request. We can manufacture to your exact CAD specifications.)

Key Advantages of Our Ta Marker Bands

• Exceptional Radiopacity: Provides sharp, high-contrast visibility under X-ray and fluoroscopy, significantly improving surgical accuracy during stent and catheter placement.

• Uncompromised Biocompatibility: Tantalum is completely inert in bodily fluids, ensuring zero toxic reactions or tissue irritation for long-term implantation.

• Superior Surface Finish: Manufactured with an average metal gloss finish—chemically cleaned and free of oxidation or discoloration.

• High Mechanical Integrity: Excellent cold-working properties allow for reliable crimping or swaging onto catheter tubes without cracking.

• Compliance: All medical materials are fully traceable, supplied with detailed COAs (Certificate of Analysis), and produced under an ISO 13485 compliant quality management system.

Tantalum marker band and platinum-iridium marker band Comparison

Tantalum Marker Bands and Platinum-iridium Marker Bands are commonly used tools in interventional surgery. Compared with platinum-iridium, Tantalum has advantages such as good biocompatibility, X-ray impermeability, high density, and low cost.

Tantalum Marker Band Applications

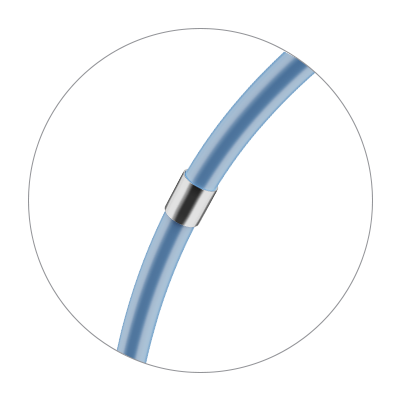

Tantalum Marker Bands are widely used in interventional medicine to mark the position of catheters and stents, providing accurate guidance for surgery. The main applications of Tantalum Marker Bands are:

1. Stent placement: Tantalum Marker Bands can be used to mark the position of stent placement in percutaneous interventions.
2. Target delineation: Tantalum Marker Bands can be used to mark the target area in radiation therapy, indicating the direction of radiation.
3. Identification of heart valve position: Placing Tantalum Marker Bands on artificial heart valves can increase diagnostic accuracy and surgical safety.

Tantalum Marker Band Packing

The Tantalum Marker Band will be packaged in a vacuum-sealed plastic bag or bottle and then placed in a carton with anti-static foam pads to prevent damage during storage and transportation, ensuring the preservation of the product's original quality.
