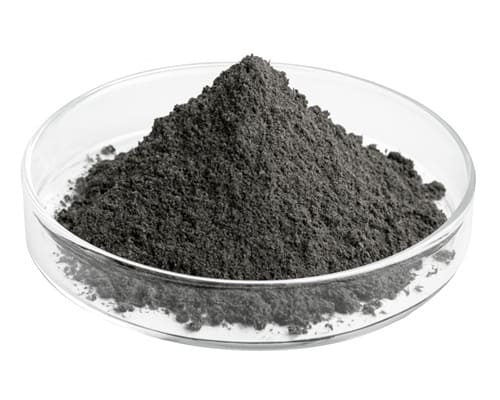

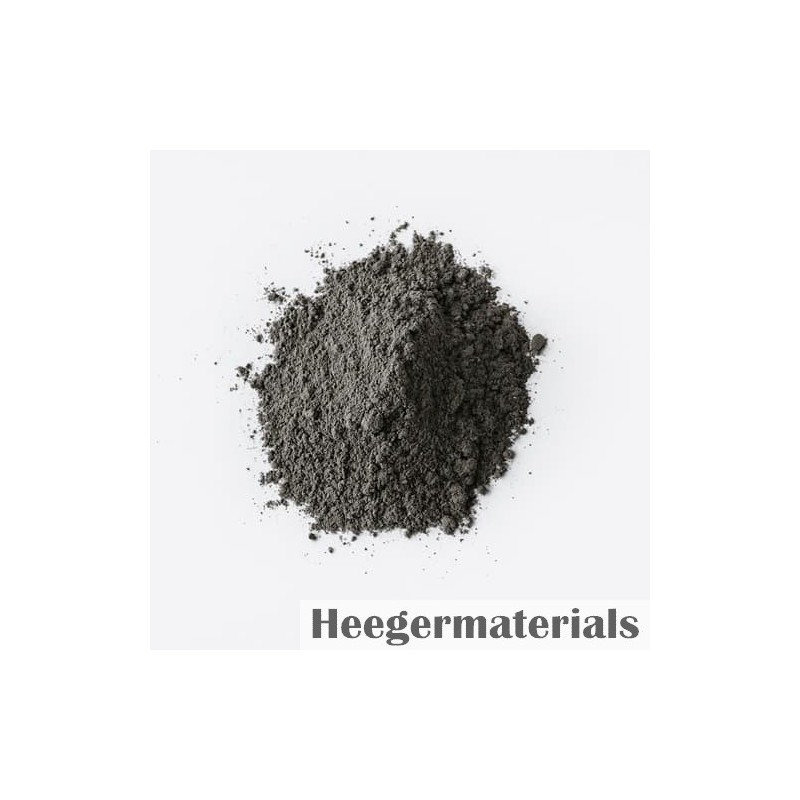

Tantalum Carbide Powder, TaC, CAS 12070-06-3

Reference: HMCP-1698

Condition: New product

Tantalum Carbide (TaC) Powder is a yellow-brown powder with a cubic crystal structure, which has high hardness, high melting point, and good high-temperature performance, and is mainly used as an additive for cemented carbide. Heeger Materials can provide top-quality Tantalum Carbide Powder at competitive prices, with customized options for purity and particle size to meet specific needs.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Purity	99.0% - 99.9%
CAS	12070-06-3

More info

Tantalum Carbide (TaC) Powder is a vital cermet material with high chemical stability, excellent oxidation resistance, and superior electrical conductivity. It resists water and most inorganic acids but dissolves in a mix of hydrofluoric and nitric acids.

Tantalum Carbide Powder, TaC, CAS 12070-06-3

Formula: TaC
Melting point: 3880℃
Boiling point: 5500℃
Density: 14.3 g/cm³
Molecular weight: 192.96 g/mol
CAS: 12070-06-3

Tantalum Carbide Powder Specifications

Product	Particle Size FSSS (μm)	Chemical Composition (%)
		Total Carbon	Free Carbon	Impurity (%max)
		Total Carbon	Free Carbon	Nb	Fe	Si	Al	Ti	O	N	Na	Ca
HM-TaC-1	0.6-0.8	6.2±0.2	≤0.15	0.1	0.05	0.01	0.005	0.01	0.40	0.2	0.005	0.01
HM-TaC-2	0.8-1.0	6.2±0.2	≤0.15	0.1	0.05	0.01	0.005	0.01	0.30	0.2	0.005	0.01
HM-TaC-3	1.0-1.5	6.2±0.2	≤0.15	0.1	0.05	0.01	0.005	0.01	0.20	0.2	0.005	0.01
HM-TaC-4	1.5-2.0	6.2±0.2	≤0.15	0.1	0.05	0.01	0.005	0.01	0.15	0.2	0.005	0.01

Tantalum Carbide Powder SEM

Tantalum Carbide Powder, TaC, CAS 12070-06-3

Tantalum Carbide Powder Features

The highest purity is 99.99%
Small particle size: min30-50nm
Concentrated distribution
Typical product: D10≥1.0μm, D50 1.2~1.8μm, D90≤3.0μm

Tantalum Carbide Powder Applications

Used in powder metallurgy
Used as a hard coating in cutting tools, hard wear-resistant alloy tools, molds
Used in fine ceramics
Used in chemical vapor deposition
Used as additives for wear and corrosion-resistant structural parts

Tantalum Carbide Powder Storage and Packing

Tantalum Carbide (TaC) Powder should be sealed and stored in a dry, cool environment, and not be exposed to the air for a long time, using inert anti-static packaging. The vacuum packing is 100g, 500g, 1kg/bag, 25kg/drum, or as required.
