Boron Carbide Powder, B4C, CAS 12069-32-8

HMCP-1705

New product

Boron Carbide (B4C) Powder is a black powder with high hardness, which has chemical resistance and hardness similar to diamond. It is widely used in manufacturing chemical-resistant pottery and wear-resistant tools. The purity and particle size can be tailored according to specific requirements.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Purity99%
CAS12069-32-8

More info

Boron Carbide (B4C) Powder has a lower hardness than industrial diamond, but higher than silicon carbide. It is an extremely hard ceramic material with a moh's hardness of 9.36. It is one of the hardest materials known, behind cubic boron nitride and diamond. Heeger Materials can provide high-quality Boron Carbide (B4C) Powder at a competitive price.

Boron Carbide Powder, B4C, CAS 12069-32-8

  • Formula: B4C
  • Molecular weight: 55.25 g/mol
  • Density: 2.508~2.512 g/cm3
  • Melting point: 2350℃
  • Boiling point: 3500℃
  • Moh's hardness: 9.36
  • Microhardness: 4950 kgf/mm2
  • CAS: 12069-32-8

Boron Carbide Powder Specifications

Product

Chemical Composition (%)

B4C

B

C

N

O

79.0

19.2

0.2

1.4

Particle Size Distribution

D10

D50

D90

0.1μm

0.8μm

2.3μm

BET

15 m2/g

Boron Carbide Powder Properties

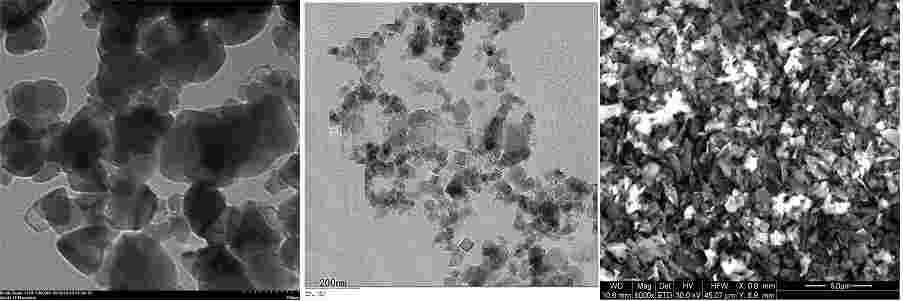

B4C Powder - SEM

  • Low fragility compared to most pottery.
  • Has a large thermal neutron capture cross-section.
  • Resistant to chemical action.
  • Insensitive to hot hydrogen fluoride and nitric acid.
  • Dissolves in molten alkali.
  • Insoluble in water and acids.

Boron Carbide Powder Applications

  • Used as abrasives or powders for grinding
  • Used as abrasion-resistant engineering parts
  • Used in lightweight ceramic armor
  • Used in metal fusion infiltration
  • Used as boron sources for producing other boron compounds
  • Used in high-temperature thermocouples
  • Used as SiC advanced ceramic sintering aids
  • Used as neutron shielding materials

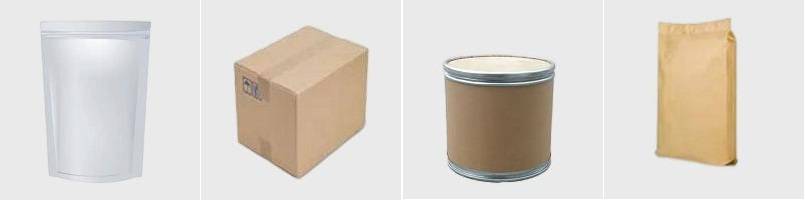

Boron Carbide Powder Storage and Packing

Boron Carbide (B4C) Powder should be kept sealed and stored in a dry and cool place. The vacuum packing is 100g, 500g, 1kg/bag, 25kg/drum, or as required.
