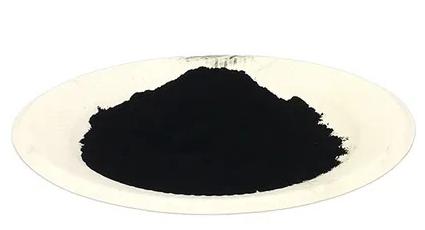

Titanium Carbide MXene Phase Powder, Ti3C2Tx MXene Powder

Data sheet

Particle Size	2–20 µm, 200–1000 nm
Materials	Ti3C2Tx

More info

Titanium Carbide MXene Phase Powder is a revolutionary two-dimensional nanomaterial that is synthesized by etching the A atomic layer from the MAX phase using etchants like HF, LiF+HCl, or NH4HF2. This results in a layered carbon/nitride-based material with outstanding conductivity and hydrophilicity. The general formula for MXenes is Mn+1XnTx, where Tx represents the functional groups (-OH, -F, -O, -Cl, etc.) that attach to the surface after chemical etching of the MAX precursor. By employing techniques like ultrasonic dispersion or ball milling, multi-layer MXenes can be exfoliated into monolayer MXene nanosheets, which have a graphene-like structure. Heeger Materials provides Ti3C2Tx MXene Powder in multiple forms, including multilayer accordion-like Ti3C2Tx, multilayer clay-like Ti3C2Tx, single-layer Ti3C2Tx powder, and high-conductivity Ti3C2Tx powder (10000~20000 S/cm), ensuring versatility and reliable performance for various advanced applications.

Titanium Carbide MXene Phase Powder, Ti3C2Tx MXene Powder

Titanium Carbide MXene Phase Powder Product List

Multilayer Accordion-Like Ti3C2Tx Powder

Parameter	XX-Ti3C2Tx-1/200	XX-Ti3C2Tx-2/400
Etching Material Mesh	200 Mesh	400 Mesh
Post-Etching Size (µm)	2–50	2–20
Conductivity (S/cm)	10–100
Specific Surface Area (m²/g)	15 ± 5
Density (g/cm³)	3.43 ± 0.03
Water Solubility	Poor
Surface Groups	-OH, =O, -F, -Cl
Appearance	Dark purple powdered material
Structure	Two-dimensional layered material with a multilayer structure, bonded by van der Waals forces between layers
Etching Process	Hydrofluoric acid etching with clear accordion-like morphology
Delamination Method	Single-layer separation achieved using intercalating agents combined with ultrasonic exfoliation
Properties	Excellent conductivity and intrinsic specific surface area
Shelf Life	Long (3–6 months), stored in vacuum or inert environments

Multilayer Clay-Like Ti3C2Tx Powder

Parameter	XX-Ti3C2Tx-1/200	XX-Ti3C2Tx-2/400
Etching Material Mesh	200 Mesh	400 Mesh
Post-Etching Size (µm)	2–50	2–20
Conductivity (S/cm)	1000 ± 500
Specific Surface Area (m²/g)	20 ± 5
Density (g/cm³)	3.43 ± 0.03
Water Solubility	Good
Surface Groups	-OH, =O, -F, -Cl -OH, =O, -F, -Cl
Appearance	Dark purple, flaky powdered material
Structure	Two-dimensional layered material with a multilayer structure bonded by van der Waals forces
Etching Process	Mild lithium fluoride/hydrochloric acid system etching reaction
Delamination Method	Low-power (80–200W) ultrasound or manual shaking
Advantages of HF Etching	Improved conductivity and increased hydrophilicity
Shelf Life	Long (3–6 months), stored in vacuum or inert environments

Single-Layer Ti3C2Tx Powder

Parameter	HF Etched Single-Layer Powder	LiF Etched Single-Layer Powder
Etching Process	HF + Intercalating Agents (Options: DMSO, Organic Bases)	Lithium Fluoride/Hydrochloric Acid System
Number of Layers	≤5 Layers
Hydrophilicity	Moderate
Conductivity (S/cm)	3500 ± 500
Surface Groups	-OH, =O, -F, -Cl
Appearance	Purple, fluffy material
Structure	Two-dimensional, single-layer structure with foldability
Production Technology	Freeze-drying technology, preserving single-layer structure morphology
Film Material Quality	Controllable quality and adjustable thickness
Usage	Directly usable, good dispersibility, widely applicable in scientific research
Shelf Life	Six months, stored under vacuum drying conditions or in an inert environment

High-Conductivity Ti3C2Tx Powder (10000~20000 S/cm)

Parameter	High-Conductivity Ti3C2Tx Powder
Etching Process	HF + HCl + LiCl (Intercalation)
Number of Layers	≤5 Layers
Conductivity (S/cm)	10000–20000
Surface Groups	-OH, =O, -F, -Cl
Appearance	Purple-black powdered material
Structure	Two-dimensional layered material with a single-layer structure
Production Method	Obtained through HF + HCl etching combined with LiCl intercalation
Conductivity	High conductivity (10000–20000 S/cm), with extended oxidation resistance
Key Application	Excellent performance in electromagnetic shielding applications
Storage	Refrigeration (0–4°C) or freezing; shelf life greater than 2 months

Titanium Carbide MXene Phase Powder SEM

Multilayer Accordion-Like Ti3C2Tx Powder SEM Multilayer Clay-like Ti3C2Tx Powder SEM

Titanium Carbide MXene Phase Powder Applications

Energy Storage: Used in supercapacitors, batteries, and other energy storage devices for its excellent electrical conductivity and high surface area.
Electromagnetic Shielding: Applied in electronic devices and coatings to provide effective electromagnetic interference (EMI) shielding due to its conductive properties.
Sensors and Wearable Electronics: Utilized in the development of flexible, wearable sensors that require high conductivity and durability.
Catalysis: Employed as a catalyst or catalyst support in chemical reactions, particularly in energy conversion and environmental applications.
Coatings and Surface Protection: Used in advanced coatings for aerospace, automotive, and industrial components, offering improved wear resistance and corrosion protection.

Titanium Carbide MXene Phase Powder Packing And Shipping

Titanium Carbide MXene Phase Powder should be stored in a sealed container in a dry and cool place and unexposed to air for an extended time. HM offers vacuum-sealed packaging, including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum or customized packaging as per specific requirements.

Where to Buy Titanium Carbide (Ti3C2Tx) MXene Phase Powder in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Powder products including Titanium Carbide MXene Phase Powder, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
