Niobium Carbide Powder, NbC, CAS 12069-94-2

HMCP-1706

New product

Niobium Carbide (NbC) Powder is a black powder with a cubic crystal structure. It has a high melting point of 3500℃, which is widely used in refractory high-temperature materials. Heeger Materials offers the best Niobium Carbide Powder at high quality and competitive prices. The purity and particle size can be tailored according to specific requirements.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Purity99.5%
CAS12069-94-2
Molecular FormulaNbC

More info

Niobium Carbide (NbC) Powder is a metallic luster powder with high hardness, which is harder than corundum. It is usually processed by sintering and is a common additive used as a grain growth inhibitor in cemented carbides.

Niobium Carbide Powder, NbC, CAS 12069-94-2

  • Formula: NbC
  • Density: 7.6 g/cm3
  • Melting point: 3500℃
  • Microhardness: >23.5 GPa
  • Molecular weight: 104.923 g/mol

Niobium Carbide Powder Specifications

Product

Particle Size FSSS (μm)

Chemical Composition (%)

Total Carbon

Free Carbon

Impurity (%max)

Ta

W

Ti

Si

Na

Fe

O

N

K

Ca

HM-NbC-1

0.8-1.0

11-11.4

≤0.30

0.20

0.10

0.02

0.01

0.01

0.05

0.50

0.20

0.01

0.01

HM-NbC-2

1.0-1.5

11-11.4

≤0.30

0.20

0.10

0.02

0.01

0.01

0.05

0.50

0.20

0.01

0.01

HM-NbC-3

1.5-2.0

11-11.4

≤0.30

0.20

0.10

0.02

0.01

0.01

0.05

0.50

0.20

0.01

0.01

Niobium Carbide Powder Properties

Niobium Carbide (NbC) Powder is a high-hardness material with good chemical stability and high-temperature performance.

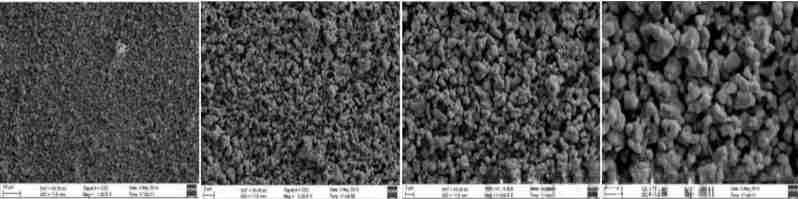

NbC Powder - SEM

  • Insoluble in hot and cold hydrochloric acid, sulfuric acid, and nitric acid.
  • Soluble in hot hydrofluoric acid and nitric acid mixed solution.
  • Stable at 1000-1100°C.
  • Oxidizing rapidly to niobium pentoxide above 1100°C.
  • Easily fused in compounds such as titanium carbide, zirconium carbide, and tungsten carbide, and together they produce a homogeneous solid solution mixture.

Niobium Carbide Powder Applications

  • Used as a hard alloy additive
  • Used in producing wear-resistant films and semiconductor films
  • Used to prepare carbide tool materials with excellent cutting performance
  • Processed into purple artificial gemstones

Niobium Carbide Powder Storage and Packing

Niobium Carbide (NbC) Powder should be sealed and stored in a dry, cool environment with inactive anti-static packaging, avoiding being exposed to the air for a long time. The vacuum package is 100g, 500g, 1kg/bag, 50kg/drum, or as required.
