Zirconium Carbide Powder, ZrC, CAS 12070-14-3

Name: Zirconium Carbide Powder, ZrC, CAS 12070-14-3
Brand: Heeger Materials Inc
SKU: HMCP-1505

Reference: HMCP-1505

Condition: New product

Zirconium Carbide (ZrC) Powder, with high purity and small particle size, is an excellent high-temperature metal-ceramic material used in cutting tools, white-hot flame materials, and high-temperature conductors. Heeger Materials offers top-quality Zirconium Carbide (ZrC) Powder at competitive prices, with customized options for purity and particle size to meet specific requirements.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Particle Size	0.1um - 100um, customized
Symbol	ZrC
Molecular Weight	103.00
Purity	99.5% - 99.99%
CAS	12070-14-3

More info

This product is currently unavailable. Please check other products. Thank you.

Zirconium Carbide (ZrC) Powder, characterized by a gray-black appearance and a cubic crystal structure, exhibits high chemical stability and excellent high-temperature performance. It is a significantly high-performance ceramic material.

Zirconium Carbide (ZrC) Powder

Formula: ZrC
Density: 6.78 g/cm3
Melting point: 3540°C
Mohs hardness: 8~9
Microhardness: 2600k kg/mm²
CAS: 12070-14-3

Zirconium Carbide (ZrC) Powder Specifications

Product	Particle Size FSSS (μm)	Chemical Composition (%)
		Total C	Free C	Impurity (%max)
		Total C	Free C	Fe	Si	Al	O	N	Na	Ca
HM-ZrC-1	1.0-1.5	11.0-11.4	≤0.80	0.05	0.05	0.05	0.80	1.00	0.01	0.01
HM-ZrC-2	3.0-5.0	11.2-11.8	≤0.80	0.05	0.05	0.05	0.50	1.00	0.02	0.02

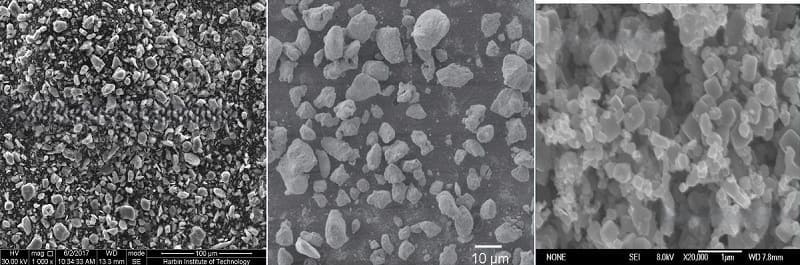

Zirconium Carbide (ZrC) Powder SEM

ZrC-XRD

Zirconium Carbide (ZrC) Powder PSD And XRD

Zirconium Carbide (ZrC) Powder PSD

Zirconium Carbide (ZrC) Powder Features

Insoluble in cold water and hydrochloric acid
Soluble in hydrofluoric acid and hot concentrated sulfuric acid containing nitric acid or hydrogen peroxide
Large specific surface area
High surface activity
Low bulk density
High-temperature, corrosion, and oxidation resistance
High strength and hardness
Good thermal conductivity and toughness
High absorption of visible light, and reflection of infrared light
Good energy storage

Zirconium Carbide (ZrC) Powder Applications

Used in fibers to improve the infrared absorption effect
Used in new insulation and temperature control textiles
Used in cemented carbide, powder metallurgy, and abrasives to improve the strength and corrosion resistance
Used as a high-temperature resistant coating to improve the surface properties of the material
Used as a modifier for carbon-carbon composite functional materials
Used as protective films for electronic devices, and high-brightness electron-emitting films
Used as ultra-hard film materials
Used as an inert matrix material in nuclear reactors
Used as insulation material and protective plating

Zirconium Carbide (ZrC) Powder Storage and Packing

Zirconium Carbide (ZrC) Powder should be kept sealed and stored in a dry and cool place, avoiding exposure to air for a long time. HM offers vacuum-sealed packaging including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum, or customized packaging as per specific requirements.
