Al2O3-TiO2 Ceramic Powder For Thermal Sparying

Data sheet

Particle Size	-45/+15 μm, -38/+10 μm, or customized
Materials	Al2O3-2%TiO2, Al2O3-3%TiO2, Al2O3-13%TiO2, Al2O3-20%TiO2, Al2O3-40%TiO2, and Al2O3-50%TiO2

More info

Al2O3-TiO2 Ceramic Powder for Thermal Spraying is a composite material that combines aluminum oxide (Al2O3) with varying amounts of titanium oxide (TiO2), offering enhanced mechanical and thermal properties. As the TiO2 content increases, the coating becomes denser, improving adhesion and mechanical strength. Compared to pure Al2O3 coatings, Al2O3-TiO2 coatings exhibit better toughness, higher impact resistance, and improved bonding to substrate materials. Additionally, when the TiO2 content exceeds 20%, the coating develops semiconductor properties, while compositions with over 13% TiO2 display a black surface with high thermal radiation characteristics. Available in different compositions, including Al2O3-2% TiO2, Al2O3-3% TiO2, Al2O3-13% TiO2, Al2O3-20% TiO2, Al2O3-40% TiO2, and Al2O3-50% TiO2, these powders offer versatility for different industrial applications. Heeger Materials provides high-quality Al2O3-TiO2 Ceramic Powder for Thermal Spraying, ensuring reliable performance across various industries.

Al2O3-TiO2 Ceramic Powder For Thermal Sparying

Al2O3-TiO2 Ceramic Powder Properties

Manufacturing Process	Fused and Crushed
Appearance	Dense, blocky particles
Key Properties	Wear resistance
Bulk Density	≥1.6g/cm³

Al2O3-TiO2 Ceramic Powder Specifications

Product Name	Main Composition
Stock Specifications	TiO2 Content Range (wt.%)	Al2O3 (wt.%)	Impurities (wt.%)
Al2O3-2% TiO2	1.5-2.5%	Balance	Na2O：<0.15% SiO2：<0.1% MgO：<0.1% CaO：<0.1% Fe2O3：<0.1%
Al2O3-3% TiO2	2.5-3.5%
Al2O3-13% TiO2	12.5-13.5%
Al2O3-20% TiO2	19.5-20.5%
Al2O3-40% TiO2	39.5-40.5%
Al2O3-50% TiO2	49.5-50.5%
Particle Size (μm)	-45/+15 -38/+10

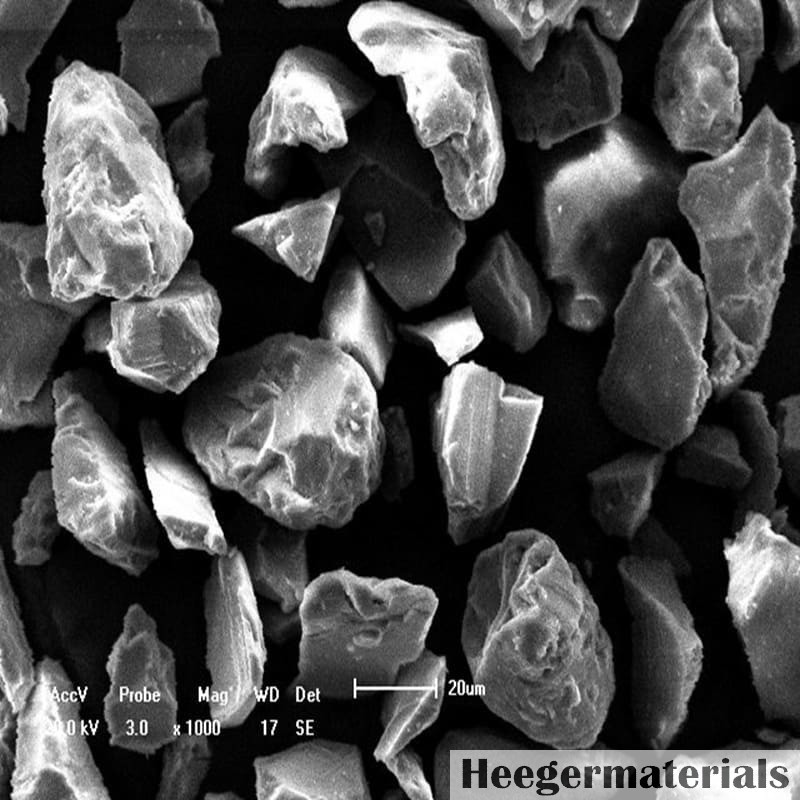

Al2O3-TiO2 Ceramic Powder SEM

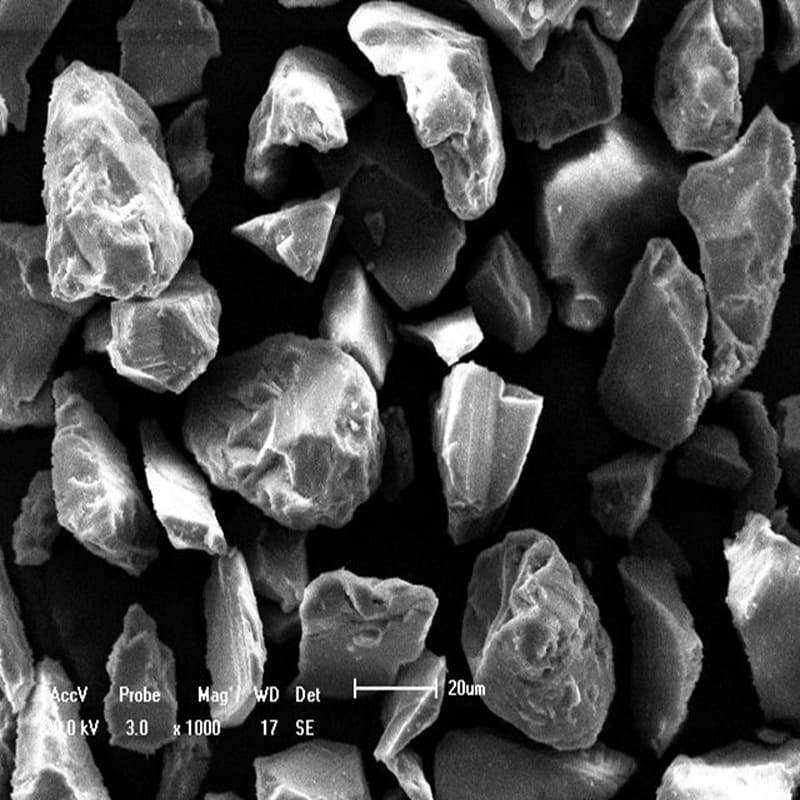

Al2O3-TiO2 Ceramic Powder for Thermal Spraying SEM

Al2O3-TiO2 Ceramic Powder PSD

Al2O3-TiO2 Ceramic Powder for Thermal Spraying PSD

Al2O3-TiO2 Ceramic Powder Applications

Stock Specifications	Properties And Applications
Al2O3-2% TiO2	Resistant to wear, sliding abrasion, corrosion, oxidation, acids, alkalis, and heat. Higher toughness compared to pure alumina, with superior insulation properties in AT2. Applications include textile manufacturing tools, butterfly valves, electrical insulation, and dielectric uses. Maximum operating temperature: 1000°C.
Al2O3-3% TiO2
Al2O3-13% TiO2	Resistant to wear, erosion, fiber abrasion, sliding abrasion, oxidation, acids, and alkalis. Titanium dioxide enhances toughness but reduces hardness. Applications include hydraulic components, bushings, mechanical seals, and wear-resistant parts for chemical fiber production. Maximum operating temperature: 540°C.
Al2O3-20% TiO2
Al2O3-40% TiO2	Resistant to wear, erosion, particle abrasion, and dilute acids. Low friction coefficient, dense coating, and high bonding strength, widely used in chemical fiber textile components. Maximum operating temperature: 540°C.
Al2O3-50% TiO2

Al2O3-TiO2 Ceramic Powder Packing And Shipping

Al2O3-TiO2 Ceramic Powder for Thermal Spraying for Thermal Spraying should be stored in a sealed container in a dry and cool place and unexposed to air for an extended time. HM offers vacuum-sealed packaging, including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum or customized packaging as per specific requirements.

Where to Buy Al2O3-TiO2 Ceramic Powder in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Ceramic Thermal Spray Powder products including Al2O3-TiO2 Ceramic Powder for Thermal Spraying, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
