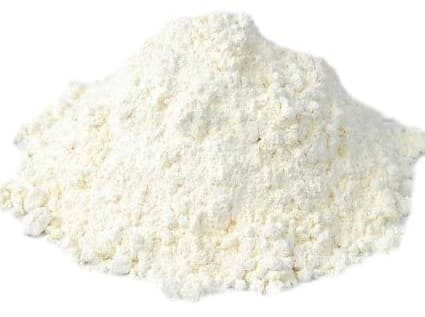

Gadolinium Zirconate Ceramic Powder For Thermal Spraying

Gadolinium Zirconate Ceramic Powder For Thermal Spraying is a high-performance material designed for ultra-high-temperature thermal barrier coatings, providing exceptional thermal insulation properties. It features extremely low thermal conductivity, ensuring effective protection in high-temperature environments. The powder also exhibits high sintering resistance, making it suitable for long-lasting applications in demanding conditions. With a maximum operating temperature of up to 1400°C, it is ideal for use in advanced aerospace, energy, and industrial applications. Heeger Materials provides high-quality Gadolinium Zirconate Ceramic Powder For Thermal Spraying, ensuring reliable performance for extreme temperature applications.

Gadolinium Zirconate Ceramic Powder Properties

Main Composition	59% Gd2O3-41% ZrO2
Manufacturing Process	Agglomerated Sintering
Appearance	Spherical Particles
Key Properties	High-temperature resistance (thermal barrier)
Bulk Density	≥1.7 g/cm³

Gadolinium Zirconate Ceramic Powder Specifications

Particle Size (μm)	Gd2O3(wt.%)	ZrO2+HfO2(wt.%)	Impurities (wt.%)
-75/+45	58.5-59.5%	40.5-41.5%	Al2O3: <0.02% CaO: <0.02% MgO: <0.02% SiO2: <0.01% Fe2O3: <0.01%
-75/+20
-63/+22
-45/+15

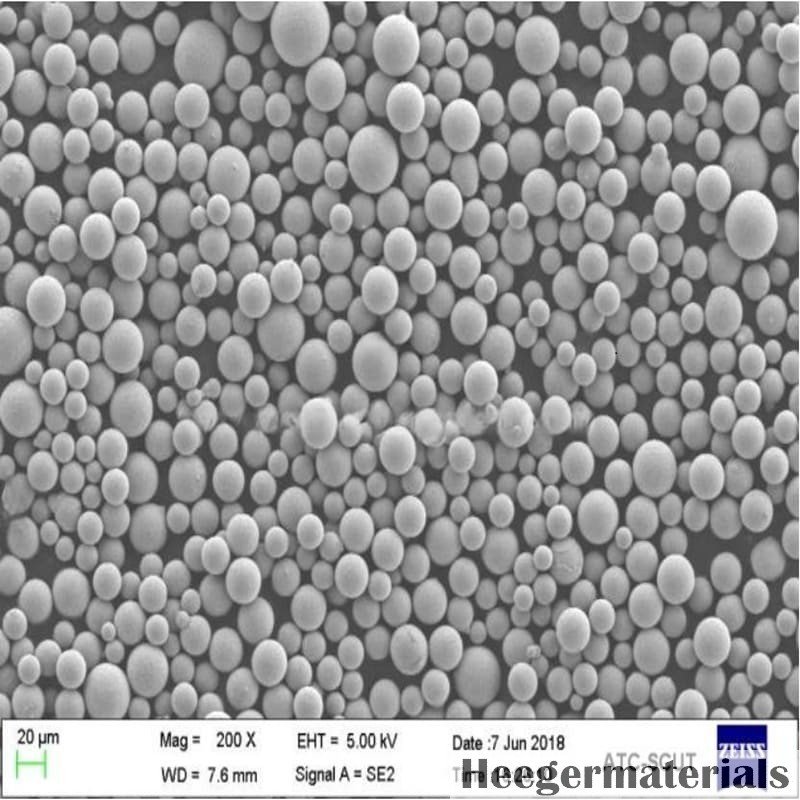

Gadolinium Zirconate Ceramic Powder SEM

Gadolinium Zirconate Ceramic Powder Applications

• Ultra-High-Temperature Thermal Barrier Coatings: Used in aerospace and jet engine components to protect against extreme heat and improve efficiency.
• Turbine Blade Coatings: Applied to turbine blades and other high-temperature components in power plants and aerospace to enhance thermal protection.
• Refractory Materials: Used in high-temperature industrial applications requiring exceptional heat resistance, such as furnaces and reactors.
• Energy and Nuclear Industry: Ideal for energy systems operating at high temperatures, providing thermal insulation for reactors and energy-efficient applications.
• Advanced Coatings for High-Temperature Equipment: Applied to various industrial equipment exposed to extreme temperatures, such as combustion chambers and heat exchangers.

Gadolinium Zirconate Ceramic Powder Coating Properties

Applicable Processes	Plasma Spraying
Bonding Strength	≥20 MPa
Porosity	7–15%
Deposition Rate	40–70%
Maximum Coating Temperature	1400°C

Gadolinium Zirconate Ceramic Powder Packing And Shipping

Gadolinium Zirconate Ceramic Powder For Thermal Spraying For Thermal Spraying should be stored in a sealed container in a dry and cool place and unexposed to air for an extended time. HM offers vacuum-sealed packaging, including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum or customized packaging as per specific requirements.
