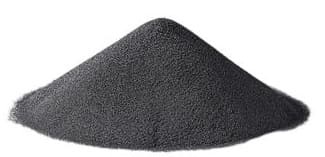

Cr2O3-TiO2 Ceramic Powder For Thermal Spraying

Cr2O3-TiO2 Ceramic Powder For Thermal Spraying is produced from high-purity chromium oxide and rutile titanium dioxide through multiple processing steps, including mixing, pressing, sintering, crushing, screening, and magnetic separation. Compared to pure chromium oxide powder, this composite material requires lower equipment demands and is suitable for plasma spraying, HVOF, and explosion spraying. It forms coatings with a hardness of HV300 ≥900-1200, offering superior resistance to fiber wear, abrasive wear, impact wear, and erosion at temperatures up to 540°C. Additionally, it provides corrosion resistance in chemical environments up to 250°C. This material is widely used in petroleum coupling rods, petrochemical plungers, shafts, sealing rings, valves, textile machinery components (such as spinning cups, rollers, and guide wheels), and mixing blades. Heeger Materials provides high-quality Cr2O3-25TiO2 and Cr2O3-40TiO2 Ceramic Powder with reliable performance for various applications.

Cr2O3-TiO2 Ceramic Powder For Thermal Spraying Specifications

Product Name	Main Composition			Particle Size (μm)
Stock Specifications	Cr2O3(wt.%)	TiO2(wt.%)	Impurities (wt.%)	-45/+15 -38/+10
Cr2O3-25TiO2	74.5-75.5%	24.5-25.5%	SiO2: <0.1% CaO: <0.1% MgO: <0.1% Fe2O3: <0.05%
Cr2O3-40TiO2	59-61%	39-41%

Cr2O3-TiO2 Ceramic Powder For Thermal Spraying Properties

Main Composition	Cr2O3-25TiO2, Cr2O3-40TiO2
Manufacturing Process	Fused and Crushed
Appearance	Dense, blocky particles
Key Properties	High hardness, excellent wear resistance, low friction coefficient
Bulk Density	≥1.9 g/cm³

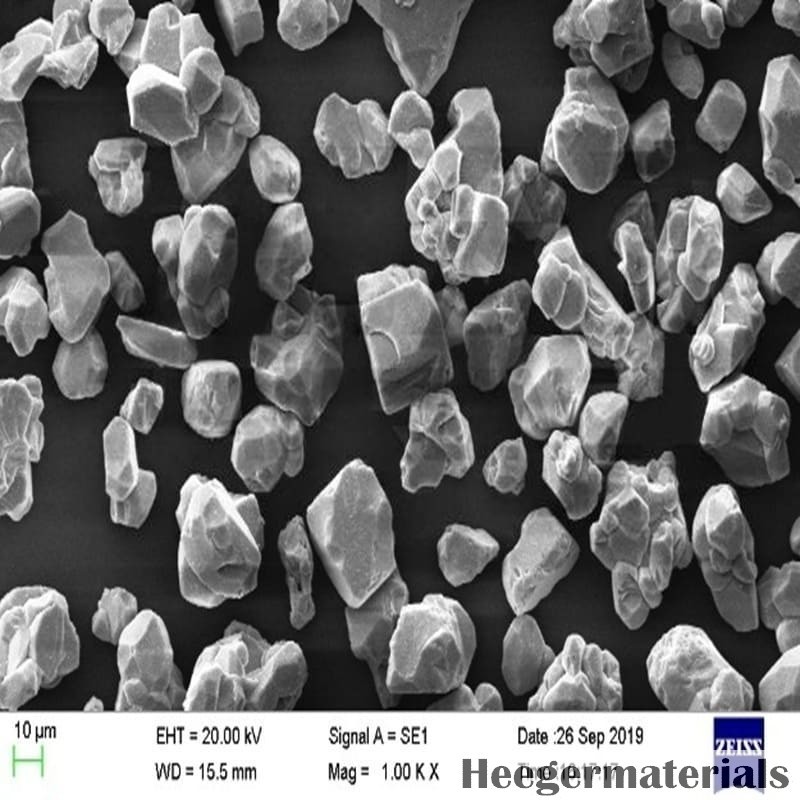

Cr2O3-TiO2 Ceramic Powder For Thermal Spraying SEM



              Cr2O3-25TiO2                             Cr2O3-40TiO2

Cr2O3-TiO2 Ceramic Powder For Thermal Spraying Applications

• Superior Wear and Corrosion Resistance: Provides excellent protection against abrasive wear, erosion, and chemical attack.
• High Fracture Toughness: Enhances durability and impact resistance in demanding applications.
• Oil and Gas Industry: Used for sucker rod couplings and other high-wear components.
• Printing and Machinery: Applied in doctor blades and machine tool crushers.
• High-Temperature Performance: Maintains stability and performance at temperatures up to 540°C.

Cr2O3-TiO2 Ceramic Powder Coating Properties

Item	Cr2O3-25TiO2	Cr2O3-40TiO2
Micro Hardness (HV0.3)	900–1100	800–1000
Applicable Processes	Plasma, Flame Spraying
Bonding Strength	≥20 MPa
Porosity	1.5–3%
Deposition Rate	30–50%
Maximum Coating Temperature	540°C



                 Cr2O3-25TiO2                                               Cr2O3-40TiO2

Cr2O3-TiO2 Ceramic Powder Packing And Shipping

Cr2O3-TiO2 Ceramic Powder For Thermal Spraying should be stored in a sealed container in a dry and cool place and unexposed to air for an extended time. HM offers vacuum-sealed packaging, including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum or customized packaging as per specific requirements.
