Silicon Epitaxial Thin Film | Si

Data sheet

Density	2.4 g/cm3
Materials	Si Epitaxial Thin Film
Melting Piont	1420 ℃

More info

Silicon (Si) Epitaxial Thin Film is a critical material in semiconductor technology, featuring a high-purity, single-crystal silicon layer grown on a silicon substrate. It enables precise doping control, uniform thickness, and superior electrical properties, making it essential for integrated circuits, power devices, and MEMS applications. With its excellent surface quality and well-controlled carrier concentration, Si epitaxial thin films support high-performance transistors, diodes, and advanced microelectronics. In addition to epitaxial thin films, we also offer Silicon Substrate for various semiconductor and research applications. Heeger Materials provides high-quality Si Epitaxial Thin Films and Silicon Substrate to meet the demands of research and industrial applications.

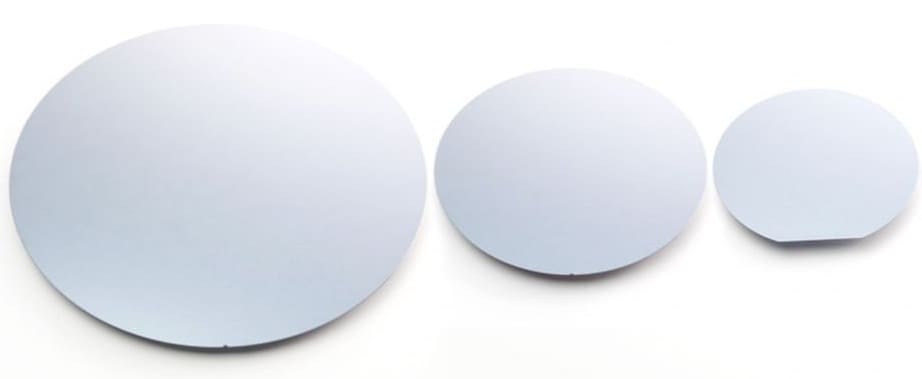

Silicon Epitaxial Thin Film | Si

Silicon Epitaxial Thin Film Properties

Crystal Structure	M3
Melt Point (℃)	1420
Density (g/cm³)	2.4
Doped Material	No doped
Type	P
Resistivity (Ω·cm)	10⁻³–40
E P D (∕cm²)	≤100
Oxygen Content (∕cm³)	≤1–1.8×10¹⁸
Carbon Content (∕cm³)	≤5×10¹⁶

Silicon Epitaxial Thin Film Specifications

Size	10×3mm, 10×5mm, 10×10mm, 15×15mm, 20×15mm
Customization	Special sizes and orientations available upon request
Thickness	0.5mm, 1.0mm
Size Tolerances	<±0.1mm
Thickness Tolerances	<±0.015mm (special: <±0.005mm)
Polishing	Single or double
Redirection Precision	±0.5°
Redirection Edge	2° (special: <1°)
Crystal Orientation	<100>, <110>, <111>

Silicon Epitaxial Thin Film Applications

Integrated Circuits (ICs): Essential for advanced semiconductor devices, enabling precise doping control for high-performance transistors and microprocessors.
Power Electronics: Used in power MOSFETs and IGBTs to enhance efficiency and reliability in energy conversion and management systems.
MEMS (Microelectromechanical Systems): Supports microfabrication of sensors, actuators, and other miniaturized electronic components.
Optoelectronics: Applied in photodetectors, optical communication devices, and silicon-based photonic circuits.
Advanced Research & Development: Used in experimental semiconductor studies, quantum computing, and next-generation nanoelectronic devices.

Silicon Epitaxial Thin Film Packing And Shipping

Silicon (Si) Epitaxial Thin Film will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures that the product arrives in perfect condition, maintaining its high-quality standards throughout the delivery process.

Where to Buy Silicon (Si) Epitaxial Thin Film in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Epitaxial Thin Film products including Silicon (Si) Epitaxial Thin Film, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
