Pentatitanium Trisilicide Powder, Ti5Si3, CAS 12067-57-1

HMSP-1740

New product

Pentatitanium Trisilicide (Ti5Si3) Powder is a black powder with a high melting point of 2130℃, making it suitable for high-temperature applications. Heeger Materials offers top-quality Pentatitanium Trisilicide Powder at competitive prices, with customized options for purity and particle sizes to meet specific requirements.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Purity99% - 99.9%
CAS12067-57-1
Molecular FormulaTi5Si3

More info

Pentatitanium Trisilicide (Ti5Si3) Powder exhibits a melting point that is comparable to or even higher than high-temperature structural ceramics, while its density is significantly lower and comparable to titanium alloys. This unique combination of properties makes it a promising material for high-temperature applications. It demonstrates excellent high-temperature characteristics, including high hardness at elevated temperatures, good stability under high-temperature conditions, and exceptional oxidation resistance.

Pentatitanium Trisilicide Powder, Ti5Si3, CAS 12067-57-1

  • Formula: Ti5Si3
  • Density: 4.65g/cm3
  • Melting point: 2130℃
  • Moh's hardness: 5.99
  • CAS: 12067-57-1

Pentatitanium Trisilicide Powder Specifications

Product

Purity (%)

Particle Size

Chemical Composition (%)

Ti

Si

Mg

P

Fe

S

HM-Ti5Si3-1

>99

5-10μm

73.6

26.1

0.001

0.012

0.12

0.07

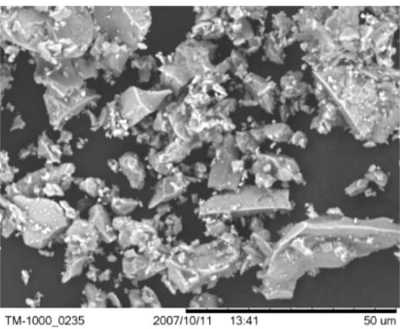

Pentatitanium Trisilicide Powder SEM

Pentatitanium Trisilicide (Ti5Si3) Powder - SEM

Pentatitanium Trisilicide Powder Features

  • Insoluble in water
  • Soluble in hydrofluoric acid
  • Excellent high-temperature performance
  • Low resistance and thermal resistance
  • Density is much lower than high-temperature structural ceramics and high-temperature alloys.

Pentatitanium Trisilicide Powder Applications

  • Used in high-temperature structural materials above 1300℃
  • Used in electrical connection structures and diffusion barrier layers
  • Used as source, gate, and drain contacts and local interconnects in CMOS integrated circuits

Pentatitanium Trisilicide Powder Storage and Packing

Pentatitanium Trisilicide (Ti5Si3) Powder should be stored in a dry and cool place, sealed to prevent exposure to moisture. The powder is available in vacuum-sealed packaging options of 100g/bag, 500g/bag, 1kg/bag, 25kg/drum, or customized as per specific requirements.

Pentatitanium Trisilicide (Ti5Si3) Powder Packiing
