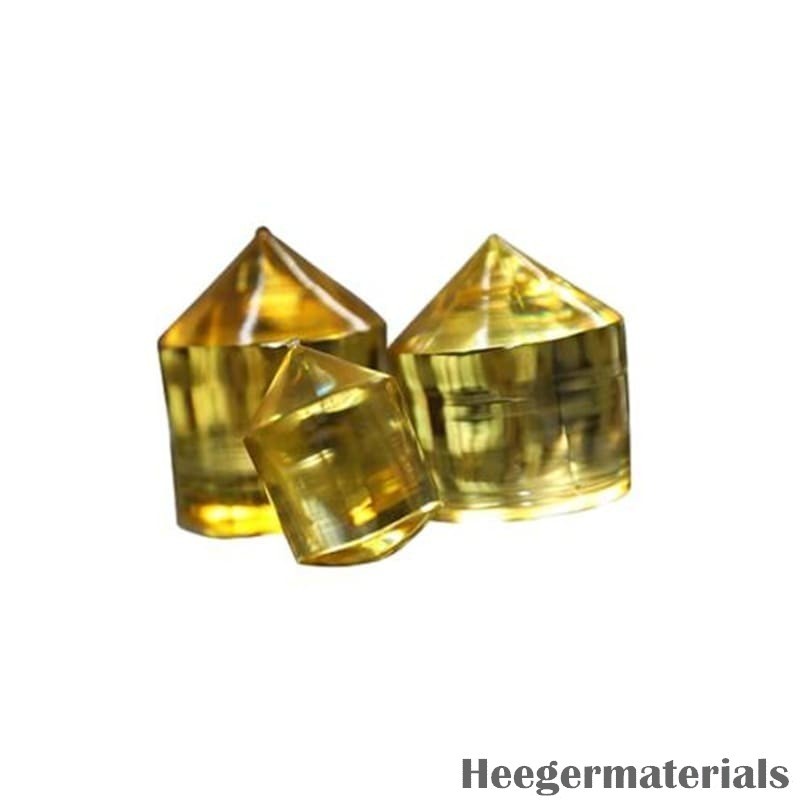

Yttrium Vanadate Crystal Substrate | YVO4 Substrate
HM2887
New product
Yttrium Vanadate (YVO4) Crystal Substrate is a high-quality birefringent material widely used in optical communication components such as isolators, connectors, and wavelength division multiplexers. Its excellent optical properties make it an essential material for advanced photonic applications.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Data sheet
| Density | 4.22 g/cm³ |
| Materials | YVO4 Substrate |
| Melting Piont | 1825 ℃ |
More info
Yttrium Vanadate Crystal Substrate | YVO4 Substrate Selection Notes
Yttrium Vanadate Crystal Substrate | YVO4 Substrate belongs to the single crystal substrate range and is selected for controlled substrate composition, orientation, dimensions, thickness, surface roughness, flatness and polishing quality. It is commonly used in epitaxial thin-film growth, electronic and photonic devices, oxide research, microscopy, surface science and materials development. When requesting a quote, confirm substrate composition, orientation, diameter or lateral dimensions, thickness, miscut, one-side or double-side polishing, roughness, flatness, termination or coating, packaging and quantity.
Related Materials and Product Forms
For material comparison or adjacent product forms, browse single crystal substrates, wafers and substrates and crystals and substrates.
FAQ
What substrate specifications are needed for Yttrium Vanadate Crystal Substrate | YVO4 Substrate? Please provide material, orientation, dimensions, thickness, miscut, polishing sides, roughness, flatness, termination or coating, packaging, quantity and intended thin-film or device process.
This product is currently unavailable. Please check other products. Thank you.
Yttrium Vanadate (YVO4) Crystal Substrate is a key material in optical communication, known for its outstanding birefringence and wide transparency range. It is widely used in passive optical components, including isolators, circulators, beam displacers, and wavelength division multiplexers. YVO4 substrates offer excellent optical quality, making them highly valuable for high-precision photonic devices. With growing demand in the international market, YVO4 plays a crucial role in advanced optical applications. Heeger Materials provides high-quality YVO4 Substrate to meet the needs of various optical and photonic industries.
Yttrium Vanadate (YVO4) Crystal Substrate Properties
| Transparency Range | 0.4 - 5 μm |
| Crystal Structure | Tetragonal; a = 7.12 Å; c = 6.29 Å |
| Growth Method | Czochralski method |
| Melting Point | 1825 ℃ |
| Density | 4.22 g/cm³ |
| Mohs Hardness | 5 Mohs |
| Hygroscopicity | Non-hygroscopic |
| Thermal Expansion Coefficient | a-axis: 4.43 × 10⁻⁶ /K; c-axis: 11.37 × 10⁻⁶ /K |
| Thermal Conductivity | A-axis: 5.32 W/(m·K); C-axis: 5.10 W/(m·K) |
| Thermo-Optic Coefficient | dna/dT: 8.5 × 10⁻⁶ /K; dnc/dT: 3.0 × 10⁻⁶ /K |
| Refractive Index, Birefringence, and 45° Dispersion Angle (ρ) | 0.63 μm: No = 1.9929, ne = 2.2154, △n = 0.2225, ρ = 6.04° 1.30 μm: No = 1.9500, ne = 2.1554, △n = 0.2054, ρ = 5.72° 1.55 μm: No = 1.9447, ne = 2.1486, △n = 0.2039, ρ = 5.69° |
| Surface Roughness (Ra) | < 5 Å |
Yttrium Vanadate (YVO4) Crystal Substrate Specifications
| Standard Dimensions | 10 × 5 × 0.5 mm 5 × 5 × 0.5 mm Diameter 1 inch × 0.5 mm Custom orientations and sizes available upon request |
| Polishing Options | Fine grinding Single-side polished Double-side polished |
Yttrium Vanadate (YVO4) Crystal Substrate Applications
- Optical Isolators and Circulators: Used in fiber optic communication systems to prevent back reflections and enhance signal stability.
- Beam Displacers: Utilized in laser systems and optical instruments for precise beam separation due to its strong birefringence.
- Wavelength Division Multiplexing (WDM) Components: Essential for splitting and combining different wavelengths in optical communication networks.
- Polarization Optics: Applied in polarizers and wave plates to control light polarization in advanced photonic systems.
- Laser Systems: Serves as a substrate for laser components, improving performance in high-precision optical applications.
Yttrium Vanadate (YVO4) Crystal Substrate Packing And Shipping
Yttrium Vanadate (YVO4) Crystal Substrate will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures that the product arrives in perfect condition, maintaining its high-quality standards throughout the delivery process.
Where to Buy Yttrium Vanadate (YVO4) Crystal Substrate in Bulk?
Heeger Materials Inc., a professional supplier and manufacturer of high-quality Single Crystal Substrates products including Yttrium Vanadate (YVO4) Crystal Substrate, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
