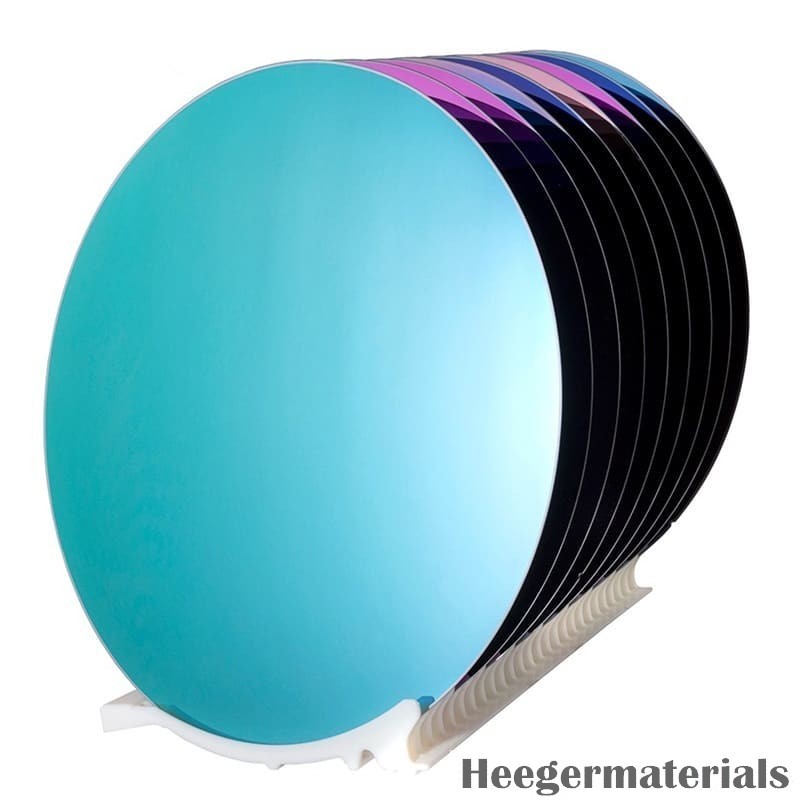

Silicon-On-Insulator Wafer | SOI Wafer

Data sheet

Materials	SOI Wafer

More info

Silicon-On-Insulator (SOI) Wafer is a multilayer semiconductor material featuring a device layer, a buried oxide (SiO2) layer, and a silicon substrate. This structure provides excellent electrical isolation, reduced parasitic capacitance, and enhanced thermal performance, making SOI wafers a preferred choice for MEMS, power devices, pressure sensors, and CMOS integrated circuits. Manufactured using SIMOX and wafer bonding techniques, SOI wafers achieve precise device layer thickness, uniformity, and low defect density. Available in diameters from 2" to 8" with a resistivity range of 0.001–100,000 ohm-cm and device layer thickness from 100nm to 300µm, these wafers meet diverse application needs. Heeger Materials provides high-quality SOI wafers with reliable performance for advanced applications.

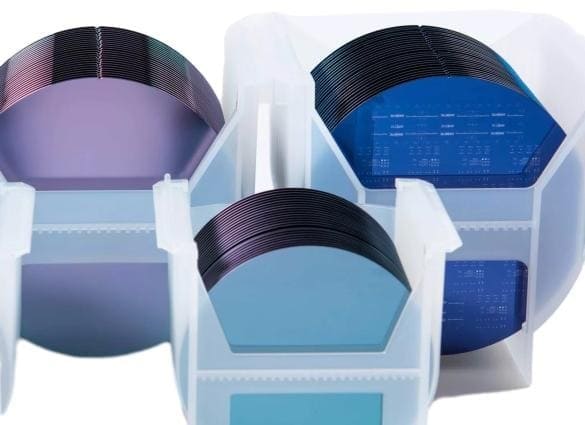

Silicon-On-Insulator Wafer | SOI Wafer

SOI Wafer Specifications

Category		Parameter
Overall	Wafer Diameter	50/75/100/125/150/200 mm ± 25 µm
	Bow/Warp	<10 µm
	Particles	<30 ea @ 0.3 µm
	Flats/Notch	Flat or Notch
	Edge Exclusion	/
Device Layer	Type/Dopant	N-Type/P-Type, B / P / Sb / As
	Orientation	<1-0-0> / <1-1-1> / <1-1-0>
	Thickness	0.1 ~ 300 µm
	Resistivity	0.001 ~ 100,000 Ω·cm
	Particles	<30 ea @ 0.3 µm
	TTV (Total Thickness Variation)	<10 µm
	Finish	Polished
BOX (Buried Oxide Layer)	Thickness	50 nm (500 Å) ~ 15 µm
Handle Layer	Type/Dopant	N-Type/P-Type, B / P / Sb / As
	Orientation	<1-0-0> / <1-1-1> / <1-1-0>
	Resistivity	0.001 ~ 100,000 Ω·cm
	Thickness	>100 µm
	Finish	Polished
Customization	SOI wafers can be customized based on client specifications

SOI Wafer Applications

MEMS Devices: Used in microelectromechanical systems for sensors, actuators, and microfluidic devices.
Power Electronics: Enhances efficiency and performance in high-voltage and power management applications.
CMOS Integrated Circuits: Improves speed and reduces power consumption in advanced semiconductor devices.
RF and High-Frequency Applications: Minimizes signal loss and enhances performance in communication and wireless technologies.
Optoelectronics: Supports photonic devices and optical communication systems.

SOI Wafer Packing And Shipping

Silicon-On-Insulator (SOI) Wafer will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures that the product arrives in perfect condition, maintaining its high-quality standards throughout the delivery process.

Where to Buy SOI Wafer in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Single Crystal Substrates products including Silicon-On-Insulator (SOI) Wafer, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
