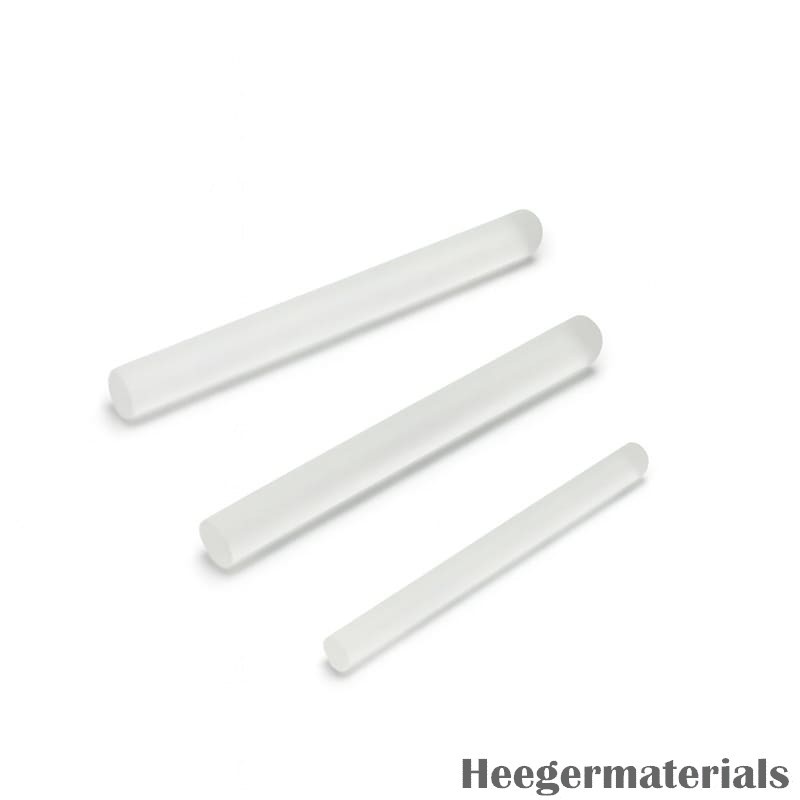

Sapphire Rod

Condition: New product

Sapphire Rod is a uniform single-crystal sapphire cylinder commonly used as a raw material for further processing. With excellent strength, thermal stability, and precise crystal orientation options, it supports applications in optics, electronics, and LED manufacturing. Heeger Materials provides high-quality Sapphire Rods in various diameters and customized specifications.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Density	3.97–4.1 g/cm3
Materials	AI2O3
Melting Piont	2045 ℃

More info

Sapphire Rod is produced as a high-purity single-crystal cylinder, typically grown along the A-axis and machined to expose the C-plane (0001), which is widely used in LED and optical applications. These rods offer stable structure, consistent geometry, and strong mechanical properties suitable for slicing, polishing, and secondary fabrication. Diameters from 2 inches to 8 inches are available, along with custom orientations and dimensions to meet specific technical requirements. Heeger Materials provides high-quality Sapphire Rods for advanced optical and electronic processing.

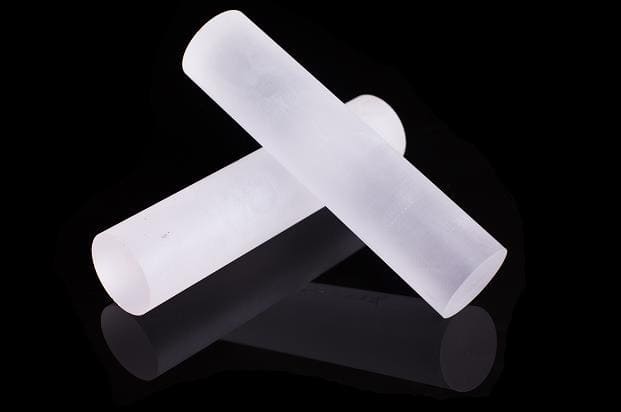

Sapphire Rod

Sapphire Rod Properties

Category	Property	Specification
General Composition	Chemical Formula	Aluminum Oxide (Al₂O₃), single crystal
Crystal Structure	Crystal System	Trigonal, hexagonal lattice
Melting Point	—	2045℃
Physical Properties	Thermal Expansion Coefficient	Parallel to optical axis: 6.7 × 10⁻⁶ /K Perpendicular to optical axis: 5.0 × 10⁻⁶ /K
	Specific Heat	0.18 Cal/g·K (25℃)
	Poisson’s Ratio	0.28
	Density	3.97–4.1 g/cm³
	Hardness	Mohs: 9 Vickers (Hv) ≥1700 kg/mm²
	Elastic Modulus	340–380 GPa
	Compressive Strength	2.1 GPa
	Tensile Strength	0.19 GPa
	Flexural Strength	448 MPa
Optical Properties	Refractive Index	Parallel: 1.769 Perpendicular: 1.76
Optical Properties	Transmission	86% (280–3500 nm)
Electrical Properties	Resistivity	>10¹⁶ Ω·cm (25℃)
Electrical Properties	Dielectric Constant	7.5–10
Chemical Properties	Corrosion Resistance	Not corroded by acids or alkalis at room temperature

Sapphire Rod Specifications

Item	Sapphire Rod
Crystal Materials	99,999%, High Purity, Monocrystalline Al2O3
Orientation	C-plane(0001), A-plane(11-20), M-plane(10-10),
Orientation	R-plane(1-102), N-plane(11-23), V-plane(22-43)
Diameter	2-inch, 4-inch, 6-inch, 8-inch, etc.
Flat	Upon request
Surface Finish	Fine Ground
Packaging	Single-piece packaging

Sapphire Infrared Transmittance at Different Thicknesses

Sapphire Rod Key Features

High Crystal Quality: Produced from uniform single-crystal sapphire with stable structure and precise orientation, including C-plane (0001) options.
Excellent Mechanical Strength: Offers strong hardness and durability, suitable for further machining such as slicing, grinding, and polishing.
Wide Temperature Resistance: Maintains stability at high temperatures, supporting applications in LEDs, optics, and high-temperature environments.
Custom Sizes and Orientations: Available from 2 inches to 8 inches in diameter, with customizable crystal directions and dimensions.
Optical and Electronic Compatibility: Suitable for use as raw material in optical components, electronic substrates, and specialty industrial parts.

Sapphire Rod Applications

LED Substrate Production: Used to prepare C-plane (0001) sapphire wafers widely applied in LED manufacturing.
Optical Component Fabrication: Serves as raw material for lenses, windows, prisms, and other precision optical parts.
Electronic and Semiconductor Devices: Applied in laser components, insulating parts, and high-temperature electronic systems.
Industrial and Mechanical Parts: Used to produce wear-resistant, corrosion-resistant components such as sleeves, pins, and guides.
Scientific Research and Processing: Provides a stable single-crystal base for experiments, crystal growth studies, and advanced material development.

Sapphire Rod Packing And Shipping

Sapphire Rod will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures that the product arrives in perfect condition, maintaining its high-quality standards throughout the delivery process.

Sapphire Rod Packing

Where to Buy Sapphire Rod in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Functional Crystals products including Sapphire Rod, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
