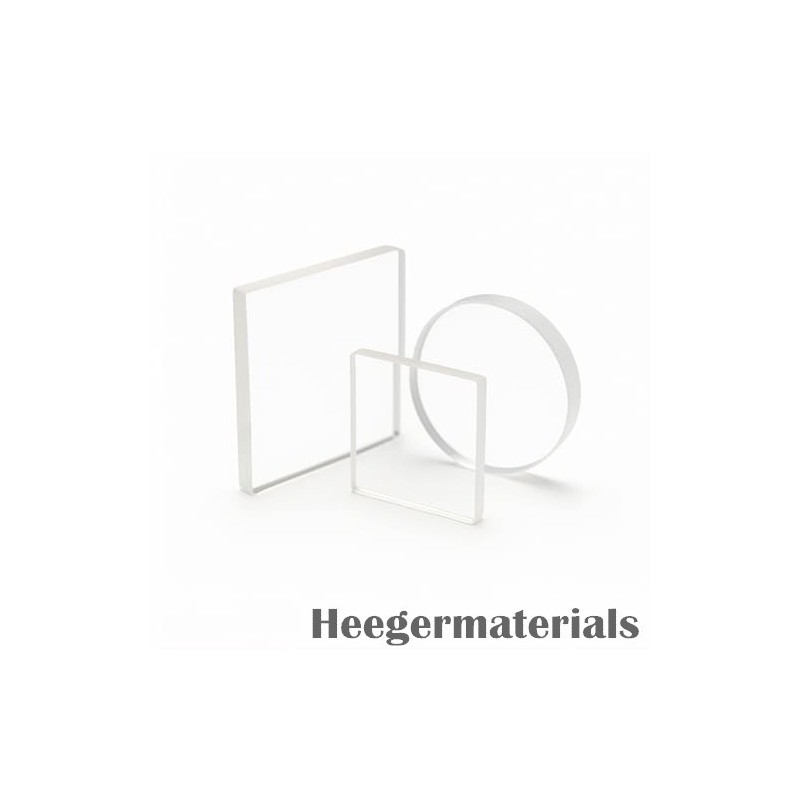

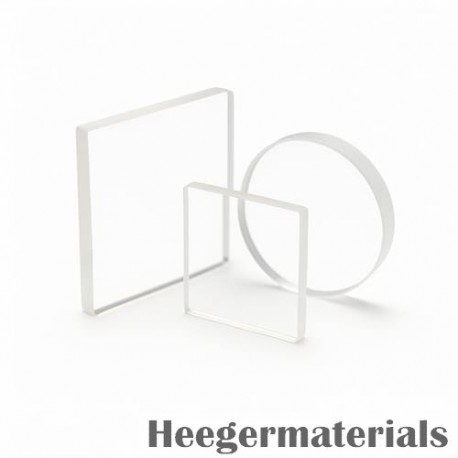

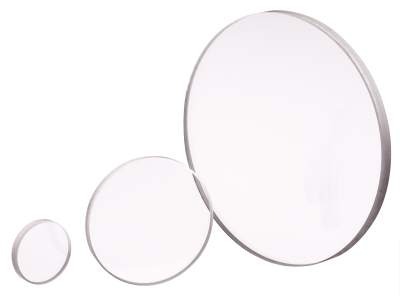

Saphhire Windows

Sapphire Windows Properties

Sapphire Windows Specifications

Sapphire Windows Types

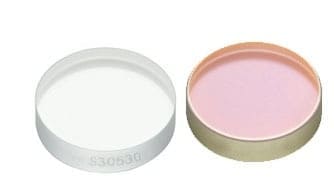

Sapphire Coated Optical Window

Sapphire Coated Optical Window features single or double-sided coatings that enhance performance across the sapphire transmission range (280–5500 nm), increasing the transmittance of specific bands from 85% up to 92–98%. Coatings can also be designed as blocking filters for targeted wavelengths. For high-power laser applications, these windows can be produced with high-threshold coatings, optimized through material and coating system design to withstand intense laser exposure while maintaining durability and optical clarity.

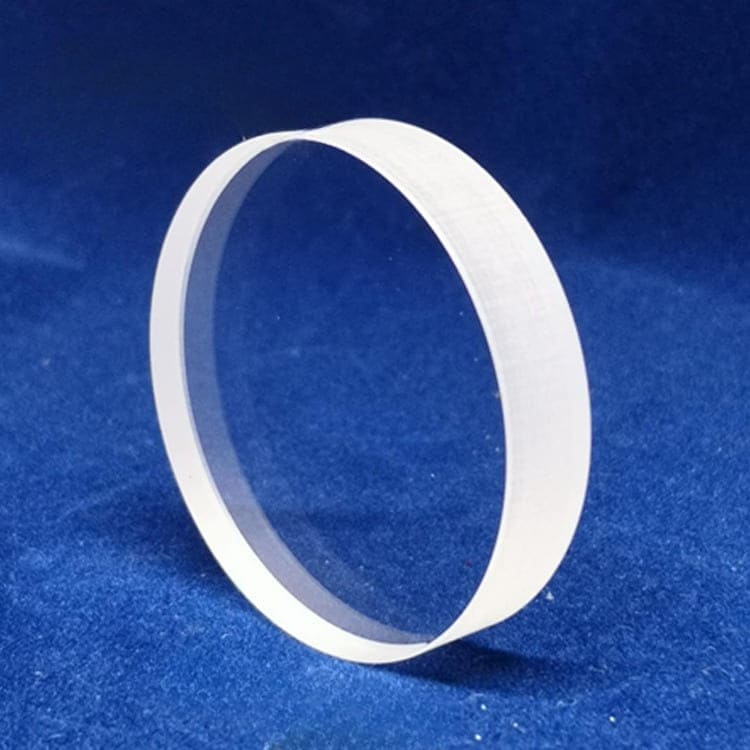

Sapphire UV-Grade Window

Sapphire UV-Grade Window is made from high-quality KY sapphire, an excellent material for ultraviolet applications. Standard sapphire typically transmits UV starting from 220 nm, but our low-absorption KY sapphire windows extend the UV transmission edge down to 168 nm. Combined with precision coating technology, these UV-grade windows provide enhanced transmittance and performance across a broader UV spectrum, meeting the needs of advanced optical, scientific, and industrial applications.

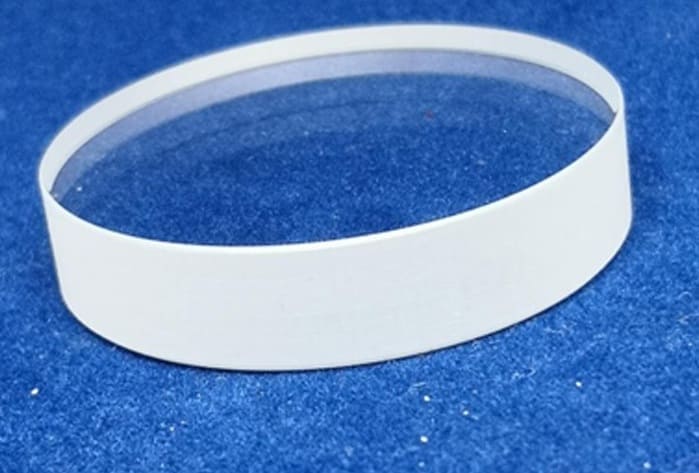

Sapphire Transmission Window

Sapphire Transmission Window is one of the most widely used types of sapphire windows. To meet the requirements of imaging, high-power laser, and precision measurement applications, our sapphire transmission windows are processed for high transmittance and superior surface quality. Wavefront distortion can reach as low as 1/20λ, surface quality up to 10/5 grade, and surface roughness below 0.5 nm, ensuring excellent optical performance and reliability.

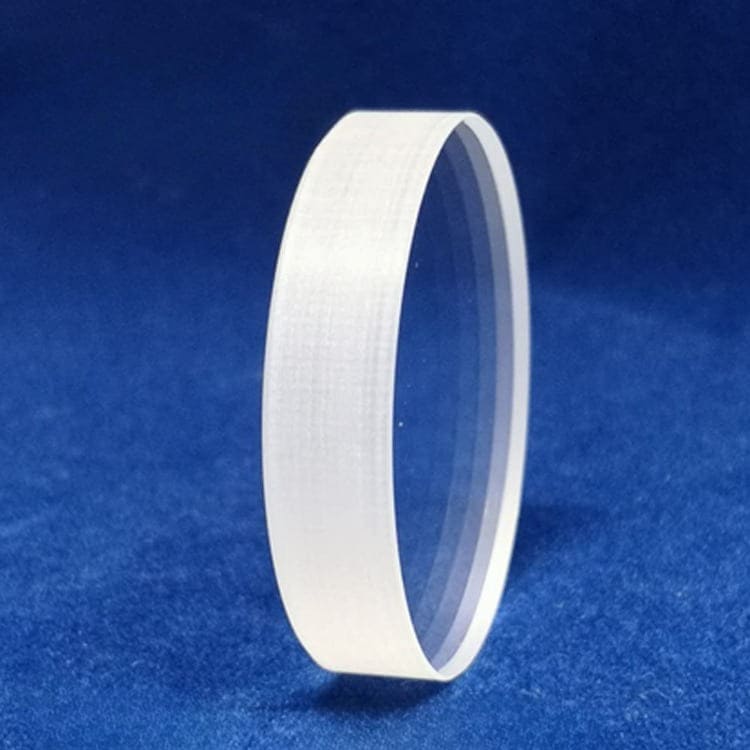

Sapphire Single-Side Reflective Window

Sapphire Single-Side Reflective Window is widely used in optical tracking, measurement, and fiber reflection applications. Thanks to the excellent stability and durability of sapphire, it is increasingly replacing traditional materials such as quartz. Our sapphire reflective windows achieve single-side surface flatness (PV) up to 1/20λ, surface quality of 10/5 grade, and surface roughness below 0.5 nm. Additional services, including metal reflective coatings and anti-reflective coatings, are also available to meet specific application requirements.

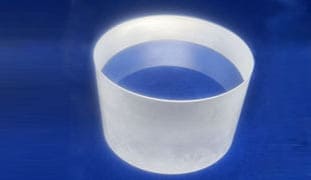

Sapphire Protective Window

Sapphire Protective Window is specially designed using the excellent physical and chemical properties of sapphire to protect internal instruments or sealed containers in harsh environments such as high temperature, high pressure, or corrosive conditions. These windows effectively isolate the internal components from the external environment while allowing safe observation. Depending on the application, Sapphire Protective Windows can be categorized as pressure-resistant, high-temperature resistant, deep-water resistant, or corrosion-resistant. They are widely used in underwater detection, high-temperature operations, oilfield exploration, pressure vessels, chemical plants, and high-power laser protection.

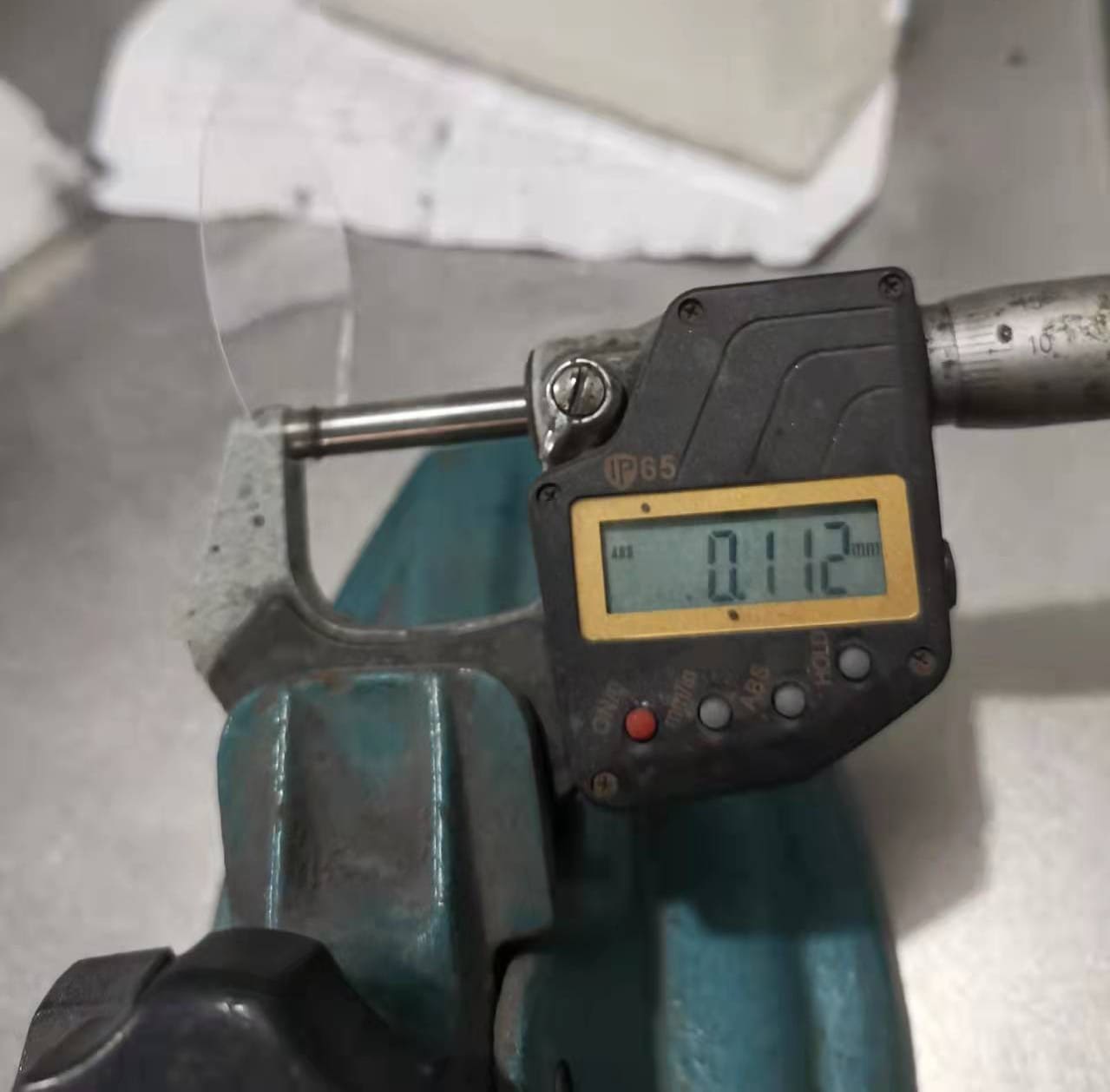

Ultra-Thin Sapphire Window

Ultra-Thin Sapphire Window refers to optical flat windows with a thickness below 0.1 mm. Using advanced double-sided polishing equipment, Heeger Materials can achieve highly stable and precise processing, maintaining excellent control over pressure and flatness. This allows for consistent batch production of ultra-thin sapphire windows ranging from 0.05 mm to 0.1 mm, providing high-quality optical performance for applications requiring minimal thickness and maximum transparency.

Sapphire Infrared Transmittance at Different Thicknesses

Sapphire Windows Key Features

• High-Purity Material: Made from KY-grown sapphire crystals with ultra-high purity, total impurity content <2 ppm, offering low absorption and high transmission in the ultraviolet range.
• Superior Surface Quality: Polished to a surface quality of at least 40/20, with roughness <0.2 nm and flatness better than 1/20λ, ensuring excellent optical performance.
• Flaw-Free Appearance: Free from chips, cracks, or internal defects, preventing defect propagation and ensuring long-term reliability and durability.

Sapphire Windows Applications

• Optical Sensors and Detectors: Protect sensitive components while maintaining high optical clarity for precise measurements.
• High-Power Laser Systems: Withstands intense laser exposure, providing durability and stable optical performance.
• Industrial Monitoring: Serves as observation windows in high-temperature, high-pressure, or corrosive environments.
• Scientific and Research Equipment: Supports precision imaging, spectroscopy, and measurement applications.
• Underwater and Harsh Environment Equipment: Used in deep-water detection, oilfield exploration, and chemical processing for reliable protection and observation.

Sapphire Windows Packing And Shipping

Sapphire Windows will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures that the product arrives in perfect condition, maintaining its high-quality standards throughout the delivery process.

Where to Buy Sapphire Windows in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Functional Crystals products including Sapphire Windows, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
