Copper Clad Molybdenum (CMC,CuMoCu) Laminates Alloy

HTMO1095

New product

Copper Clad Molybdenum (Cu/Mo/Cu) Alloy is a sandwich-structured composite material consisting of a molybdenum core layer and two copper-clad layers. It offers adjustable CTE, high thermal conductivity, and strength, and can be stamped into various components. Heeger Materials offers top-quality CMC products with different grades at competitive prices.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

MaterialsCu/Mo/Cu: 111,121,131,141,13/74/13, S-CMC5:1:5:1:5 (Cu5Mo1Cu5Mo1Cu5), S-CMC313-5 (Cu3Mo1Cu3Mo1Cu3), S-CMC612-5 (Cu6Mo1Cu2Mo1Cu6), HS-CMC
SizeCustomized

More info

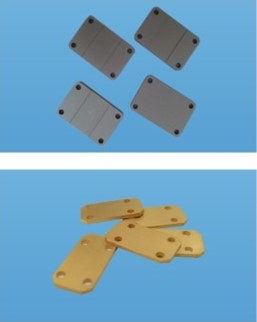

Cu/Mo/Cu(CMC) heat sink, also known as CMC alloy, is a sandwich-structured and flat-panel composite material. It uses pure molybdenum as the core material and is covered with pure copper or dispersion-strengthened copper on both sides. Besides, the copper-molybdenum copper heat sink has an adjustable coefficient of thermal expansion, high thermal conductivity, and high thermal stability.

HM can also provide S-CMC, a multi-layer structured CMC with improved symmetry to reduce stress and deformation, enhancing reliability. HS-CMC is a multi-layer composite sheet with molybdenum core material and perforations filled with oxygen-free copper, resulting in better thermal conductivity in the Z-direction. This effectively reduces thermal resistance and enhances heat transfer efficiency, making it suitable for high-frequency and high-power applications.

CMC-CuMoCu Alloy

Copper Clad Molybdenum Materials Properties

CMC111 means the thickness of the layer, Cu:Mo:Cu = 1:1:1.

Grade

Density g/cm3

Coefficient of thermal

Expansion ×10-6  (20)

Thermal conductivity W/(M·K)

CMC111

9.32

8.8

305XY/250Z

CMC121

9.54

7.8

260XY/210Z

CMC131

9.66

6.8

244XY/190Z

CMC141

9.75

6

220XY/180Z

CMC13/74/13

9.88

5.6

200XY/170Z

S-CMC5:1:5:1:5 (Cu5Mo1Cu5Mo1Cu5)

9.2

 12.8 (200℃)

6.1 (20-800℃)

350 (XY) /295 (Z)

Copper Clad Molybdenum Applications

Cu/Mo/Cu (CMC) heat sinks have similar applications to tungsten copper heat sinks.

Application field:

  • Thermal mounting plates
  • chip carriers for microwave components,
  • flanges and frames for RF and laser diode packages
  • LED packages, BGA packages, GaAs device mounts, etc.

Copper Clad Molybdenum Alloy Packing

The copper-clad molybdenum (Cu/Mo/Cu) Alloy is tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
