Name: Boron Nitride Fiber
Brand: Heeger Materials Inc
SKU: HM3016

Data sheet

Shape	Paper, Felt, Cloth
Materials	BN

More info

Boron Nitride Fiber is a high-performance ceramic fiber known for its exceptional thermal resistance (up to ~2000 °C), chemical stability, ablation resistance, excellent dielectric properties (dielectric constant ≤ 4.5, dielectric loss ≤ 5×10⁻³), and neutron absorption. These properties make it a valuable material in advanced fields such as aerospace, aviation, nuclear technology, and next-generation energy systems. We offer three product types: Flexible Boron Nitride Fiber Paper, which is used in 5G/6G communication insulation and thermal management devices, nuclear and railway electronics, and high-temperature insulation layers; Boron Nitride Fiber Cloth, ideal as a base material for aerospace components and high-temperature insulators; and Boron Nitride Fiber Felt, which serves as a substrate for wave-transparent materials and thermal insulation in ultra-high temperature environments. Heeger Materials provides high-quality Boron Nitride Fiber solutions to support demanding applications in cutting-edge industries.

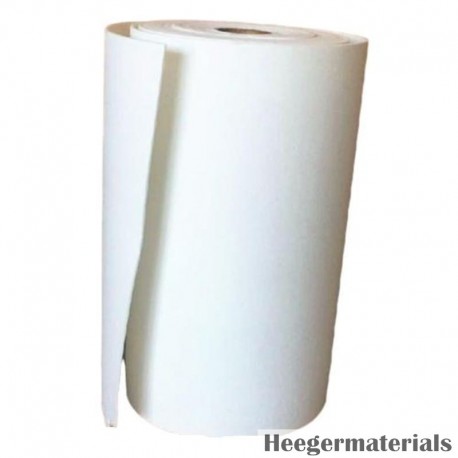

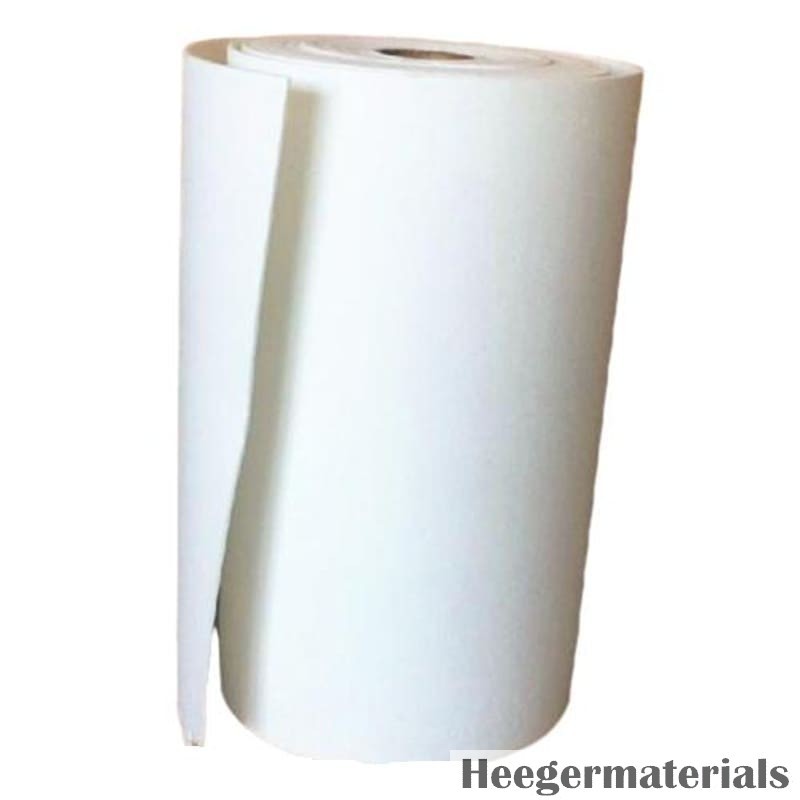

Flexible Boron Nitride Fiber Paper Boron Nitride Fiber Felt Boron Nitride Fiber Cloth

Flexible Boron Nitride Fiber Paper Specifications

Product Name	Thickness (mm)	Tensile Strength (N/15mm)	Surface Density (g/m²)	Minimum Bending Diameter (mm)	Breakdown Strength (kV/mm)
Boron Nitride Insulation Paper	0.4–0.5	≥15	300–350	75	≥3.0
Boron Nitride Release Paper	0.35–0.4	≥3	140–160	20	≥3.0

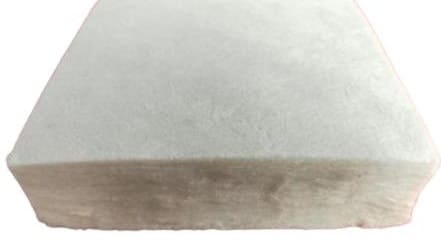

Boron Nitride Fiber Felt Specifications

Surface Density (g/m²)	4000 ± 50
Temperature Resistance (°C)	1600
Thickness (mm)	35 ± 3
Moisture Content (%)	≤1
Combustible Content (%)	≤1
Thermal Conductivity (W/m·K)	0.068 (500°C)

Note: The Boron Nitride Fiber Felt can be customized based on specific requirements.

Boron Nitride Fiber Cloth Specifications

Process	Thickness (μm)	Surface Density (g/m²)	Conductivity (S/cm)	Dielectric Constant	Dielectric Loss	Temperature Resistance (°C)
Plain Weave	250–300	200–250	10⁻⁹–10⁻¹²	-	-	1600 (in an inert atmosphere)
Twill Weave	350–400	180–220	10⁻⁹–10⁻¹²	≤4.5	≤5×10⁻³
Double Twisted Weave	400–500	325–350	10⁻⁹–10⁻¹²	-	-

Boron Nitride Fiber SEM

Boron Nitride Fiber Applications

Advanced Communication Systems: Flexible Boron Nitride Fiber Paper is used in 5G/6G insulation and heat dissipation components for high-frequency electronics.
Aerospace and Aviation: Boron Nitride Fiber Cloth serves as a high-temperature insulation layer and structural base material for spacecraft and aircraft components.
Nuclear and Energy Sectors: Due to its neutron absorption and dielectric stability, Boron Nitride Fiber products are applied in nuclear insulation and thermal shielding systems.
Thermal Management in Electronics: Used in high-speed rail and nuclear power electronics for reliable insulation and heat spreading.
High-Temperature Protection: Boron Nitride Fiber Felt is applied as insulation in extreme environments, including wave-transparent radomes and ultra-high-temperature reactors.

Boron Nitride Fiber Packing And Shipping

Boron Nitride Fiber will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures the product arrives in perfect condition, maintaining its high-quality standards throughout delivery.

Where to Buy Boron Nitride (BN) Fiber in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Boron Nitride (BN) products including Boron Nitride Fiber, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
