Nitride Powder

View larger

Display all pictures

Titanium Nitride Powder, TiN, CAS 25583-20-4

Reference: HMNP-1686

Condition: New product

Titanium Nitride (TiN) Powder is an exceptionally hard ceramic material frequently employed as a coating for titanium alloy, steel, carbide, and aluminum components to enhance the surface properties of the substrate. Heeger Materials offers top-quality Titanium Nitride Powder at competitive prices. The purity and particle size of the powder can be customized based on specific requirements.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Particle Size	customized
Purity	99.9%
CAS	25583-20-4
Molecular Formula	TiN

More info

Titanium Nitride (TiN) Powder exhibits excellent thermal shock resistance, distinguishing itself as a notable heat-resistant material. This powder finds versatile applications in powder metallurgy, fine ceramic raw material powder, conductive materials, decorative materials, aerospace, and more.

Titanium Nitride Powder, TiN, CAS 25583-20-4

Formula: TiN
Melting point: 2950℃
Density: 5.44 g/cm³
Moh's hardness: 8-9
CAS: 25583-20-4

Titanium Nitride Powder Chemical Analysis

Type	Particle D50	Purity (%)	O (%)	H (%)	C (%)	N (%)
HM-TiN-1	10-30nm	＞99.0	N/A	N/A	N/A	19.0~22.4
HM-TiN-2	0.5-1.0μm	＞99.0	≤1.0	≤0.005	≤0.1	19.0~22.4
HM-TiN-3	1.0-3.0μm	＞99.5	≤0.8	≤0.005	≤0.1	19.0~22.4
HM-TiN-4	1.0-3.0μm （80%）	＞99.5	≤0.8	≤0.005	≤0.1	19.0~22.4
HM-TiN-5	-200mesh	＞99.99	≤0.1	≤0.005	≤0.001	19.0~22.4

Titanium Nitride Powder Properties

Titanium Nitride (TiN) Powder's physical and chemical properties are determined by the content of the element nitrogen. It has a high melting point, good chemical stability, high hardness, and good electrical, thermal, and optical conductivity. The TiN crucible is an excellent vessel for studying the interaction of steel with some elements.

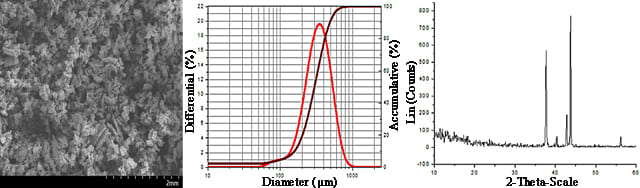

Titanium Nitride Powder - SEM

High purity
Small particle size: min 10-30nm
Concentrated distribution
Typical product: standard 1~3μm (D10＞1.0μm, D50: 1.2~1.8μm, D90＜3.0μm)

Titanium Nitride Powder Applications

In the metal ceramics field
In the substitution gold decoration field
In clinical medicine and dentistry
Used as a high-temperature lubricant
Used to develop new types of tools
Used for steam jet propulsion and rockets
As a film coated on the glass

Titanium Nitride Powder Storage and Packing

Titanium Nitride (TiN) Powder should be kept sealed in a cool and dry place. The vacuum packing is 100g/bag, 500g/bag, 1kg/bag, 25kg/drum, or as required.
