Aluminum Nitride Powder, AlN, CAS 24304-00-5-Heeger Materials Inc View larger

Aluminum Nitride Powder, AlN, CAS 24304-00-5


New product

Aluminum Nitride (AlN) Powder boasts a range of outstanding characteristics, including a thermal expansion coefficient close to that of silicon. Heeger Materials offers top-quality Aluminum Nitride (AlN) Powder at a competitive price, with a standard particle size ranging from 1.0 to 2.0 μm. Customized services are also available to meet specific requirements.

More details


Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Particle Size1.0-2.0 μm, or customized
Molecular Weight40.99
Purity99%, 99.9%

More info

Aluminum Nitride (AlN) Powder is a non-oxide semiconductor material with a wide direct bandgap of 6.12 eV. At room temperature, aluminum nitride exhibits high strength, and this strength diminishes gradually with increasing temperature. Its favorable combination of good thermal conductivity and a low coefficient of thermal expansion renders it an excellent material for heat-resistant applications. The outstanding thermal shock resistance of aluminum nitride makes it suitable for the manufacturing of high-performance ceramic components.

Aluminum Nitride Powder, AlN, CAS 24304-00-5

  • Formula: AlN
  • Melting point: 2200℃
  • Boiling point: 2249 ℃
  • Refractive index: 1.9-2.2
  • Moh's hardness: 9-10

Aluminum Nitride Powder Physical Properties


Thermal conductivity Coefficient

Thermal expansivity

Maximum usage temperature

Bending resistance

Specific volume resistance

Dielectric strength

>3.1 g/cm3


4.4×10-6 K





Aluminum Nitride Powder Specifications


Purity (%)

Particle D50 (μm)

O (wt%)

Fe (ppm)

Si (ppm)

C (ppm)

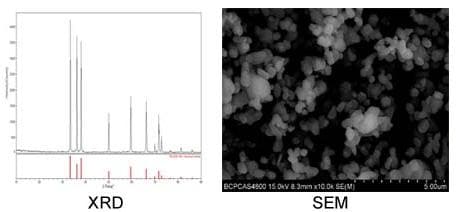

Aluminum Nitride Powder XRD and SEM

Aluminum Nitride (AlN) Powder - SEM and XRD

Aluminum Nitride Powder Features

  • No erosion by aluminum and other molten metals and gallium arsenide
  • Excellent electrical insulation and dielectric properties
  • Poor high-temperature oxidation resistance
  • Easy to absorb moisture and hydrolyze in the atmosphere
  • Very high thermal hardness

Aluminum Nitride Powder Applications

  • Ceramic Materials: Used in manufacturing high-performance ceramic parts.
  • Metal material reinforcement: Used in the preparation of metal-based and polymer-based composites.
  • Electronics industry: Used as heat dissipation and substrate materials.
  • Lighting industry: Used as a heat dissipation material for LEDs, improving their performance and lifespan.
  • Lubricating Materials: Used to prepare high-temperature lubricating materials.

Aluminum Nitride Powder Storage and Packing

Aluminum Nitride (AlN) Powder should be stored in a cool, dry environment and avoid heavy pressure. The powder without surface treatment should not be exposed to air during use to prevent moisture absorption and aggregation, which will affect the dispersion performance and use effect. HM offers vacuum-sealed packaging including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum, or customized packaging as per specific requirements.

Aluminum Nitride (AlN) Packing
