Aluminum Nitride (AlN) Products

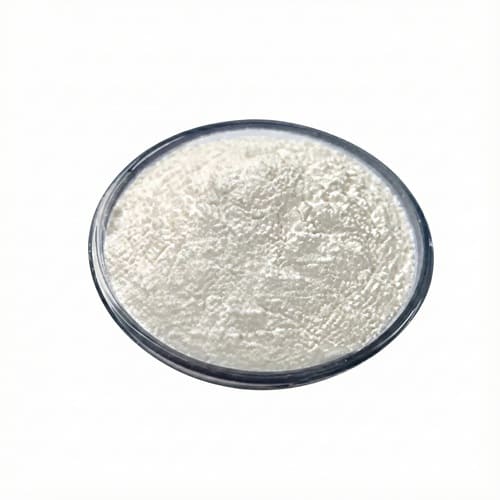

Aluminum Nitride (AlN) Surface Modification Powder

HM1911

New product

Aluminum Nitride (AlN) Surface Modification Powder is treated with an acid solution to form a protective film on the surface of AlN particles by esterifying the hydroxyl group with the acid. Heeger Materials can provide top-quality Aluminum Nitride (AlN) Modification Powder at competitive prices, with customized options for particle size to meet specific requirements.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Particle SizeCustomized
Molecular FormulaAlN

More info

The Aluminum Nitride (AlN) Surface Modification Powder undergoes specialized surface treatment to improve its resistance to hydrolysis and dispersibility, rendering it particularly suitable for electronic packaging, thermal interface materials, high thermal conductivity plastics, and rubbers.

Aluminum Nitride (AlN) Surface Modification Powder

AlN Surface Modification Powder Specifications

Item

HM-F1T08

HM-F120T01

D50 (μm)

1.41

121.6

Specific area (m2/g)

1.28

0.01

Impurity Content

O (%)

0.93

1.41

Ca (ppm)

<300

<300

Fe (ppm)

<25

<50

Si (ppm)

<20

<30

Apparent density (g/cm3)

1.05

1.81

Tap density (g/cm3)

1.64

2.04

Moisture (%)

0.02

0.02

AlN Surface Modification Powder SEM

Aluminum Nitride (AlN) Surface Modification Powder SEMAluminum Nitride (AlN) Surface Modification Powder

AlN Powder Surface Modification Methods

You can choose the appropriate aluminum nitride powder modification based on your specific needs. For example, if you require improved compatibility with resins, select silane modification; for enhanced moisture resistance, opt for hydrolysis-resistant treatment.

  • Silane Coupling Agent Modification: Enhances compatibility with specific matrix systems such as silicone or organic resins.
  • Inorganic Hydrolysis Resistance Treatment: Improves resistance to hydrolysis, allowing for better stability in humid environments.
  • Inorganic Hydrolysis Resistance + Silane Coupling Agent Modification: Combines hydrolysis resistance with silane treatment for enhanced performance in different application systems.

AlN Powder with Inorganic Hydrolysis-Resistant Modification

AlN is widely used in electronics for its high thermal conductivity (320 W/(m·K)), but it reacts with water after moisture absorption, reducing its thermal performance. Surface treatment with coupling agents can lower its hydrolysis but limits further treatment. HM's inorganic coating method overcomes this, allowing further organic coatings and providing better stability for high-reliability applications.

                                           AlN PH testing in an 80°C water bathAIN PH testing in an 80°C water bath

                                           WR Type Hydrolysis Resistance Test Report

Product Name

Aluminum Nitride Filler Powder WR Type

Equipment and Materials

Thermostatic water bath, beaker, pure water, wide-range pH test paper

Test Procedure

1. Set water bath to 80°C.

2. Weigh 10g sample into 250ml beaker, add pure water to 100ml mark.

3. Place beaker in water bath, monitor pH changes (add pure water as needed).

Test Results (L/LG Grade)

7 days

14 days

30 days

pH = 7

pH ≤ 7.5

pH ≤ 8.5

Test Results (G Grade)

7 days

14 days

30 days

pH = 7

pH ≤ 7

pH ≤ 7.5

Remarks

Ordinary AlN powder: pH >10 in 15 mins, ammonia odor, clumping. WR-coated powder: pH < 8.5 after 30 days, no ammonia odor, no clumping.

AlN Surface Modification Powder Advantages

  • High resistance to hydrolysis
  • Excellent hydrophobicity
  • High thermal conductivity

AlN Surface Modification Powder Applications

  • Thermal Interface material
  • Semiconductor Packaging
  • Metal substrates coating
  • Thermal engineering plastics

AlN Surface Modification Powder Packing

Aluminum Nitride (AlN) Surface Modification Powder should be stored in a sealed container in a dry and cool place and not exposed to air for an extended period. HM offers vacuum-sealed packaging including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum, or customized packaging as per specific requirements.

Aluminum Nitride (AlN) Surface ModificationPowder Packing
