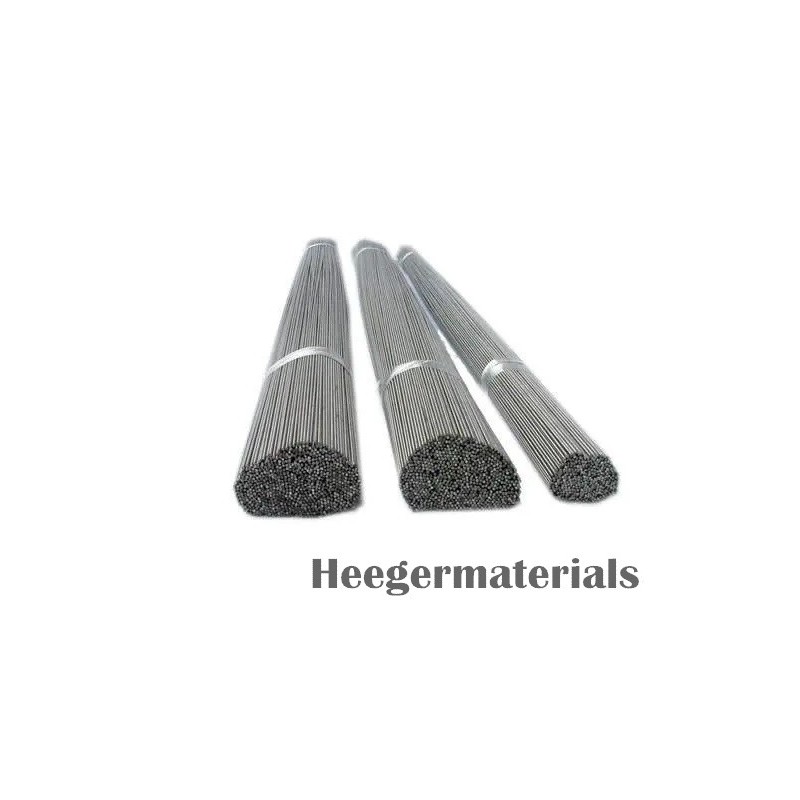

Tantalum (Ta) Wire

Reference: HTTa0005

Condition: New product

Tantalum (Ta) wire is a kind of wire-like tantalum material made of tantalum powder as raw material through plastic processing methods such as rolling and drawing. Tantalum wire is used the most in the electronics industry and is mainly used for anode leads of tantalum electrolytic capacitors.

More details

Inquiry
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Send to a friend
Send to a friend

Tantalum (Ta) Wire
Tantalum (Ta) wire is a kind of wire-like tantalum material made of tantalum powder as raw material through plastic processing methods such as rolling and drawing. Tantalum wire is used the most in the electronics industry and is mainly used for anode leads of tantalum electrolytic capacitors.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Data sheet

Diameter	0.2mm+
Purity	99.95% ,99.99%
Standard	ASTM B365; ASTM F560
Material	Ta, Ta10W, Ta2.5W, Ta40Nb,UNS R05200, R05400, R05255, R05252, R05240
Condition	Annealed, Unannealed

More info

HM provides high-quality Tantalum (Ta) Wire at a competitive price, which can be used in Scientific research or industrial production. Pure tantalum wire is available in 99.95% and 99.99% purity. We can also provide tantalum alloy wire, the common ones are Ta10W and Ta2.5W Rods. Tantalum wire is used the most in the electronics industry and is mainly used for anode leads of tantalum electrolytic capacitors.

Tantalum Wire Specifications

Product	Tantalum Wire
Size	Diameter 0.01” x Length In coil or Straight
Material	Tantalum or alloy including: UNS R05200, UNS R05400, R05252 Ta-2.5W, R05255 Ta-10W, Ro5240 Ta-40Nb, Other customized alloy
Standard	ASTM B365; ASTM F560 (Medical Grade)
purity	>=99.95% or 99.99%

*If the diameter is <0.125”, please check our tantalum & tantalum alloy rod.

tantalum wire - heegermaterials

Tantalum Wire Application

Tantalum wire is usually used as the lead wires on tantalum capacitors. Tantalum wire was the primary material used for filaments in light bulbs. It's conjointly utilized in the industry within the manufacture of rectifiers and capacitors. Other applications embody medical devices, chemical processes, and lighting applications. HM will provide tantalum wire with a premium surface finish, its superior performance in such applications.

Tantalum Wire Mechanical Properties

WIRE 0.010 in. (0.254 mm) to 0.124 in. (3.14 mm) Diameter	Diameter inches (mm)	Ultimate Tensile Strength min., psi (MPa)	Elongation min., %*
Unalloyed tantalum (R05200 and R05400)	0.010 (0.254) to 0.0149 (0.379) 0.015 (0.381) to 0.0249 (0.633) 0.025 (0.635) to 0.1240 (3.140)	35,000 (241) 35,000 (241) 30,000 (207)	10 15 20
97.5% tantalum 2.5% tungsten (R05252)	0.010 (0.254) to 0.0149 (0.379) 0.015 (0.381) to 0.0249 (0.633) 0.025 (0.635) to 0.1240 (3.140)	40,000 (276) 40,000 (276) 40,000 (276)	5 10 15
90% tantalum 10% tungsten (R05255)	0.030 (0.762) to 0.1240 (3.140)	70,000 (482)	15
60% tantalum 40% niobium (R05240)	0.010 (0.254) to 0.0149 (0.379) 0.015 (0.381) to 0.0249 (0.633) 0.025 (0.635) to 0.1240 (3.140)	40,000 (276) 40,000 (276) 40,000 (276)	10 15 20
* 10 in. (254 mm) gauge length to 0.050 in. (1.27 mm) diameter and 1 in. (25.4 mm) or 2 in. (50.8 mm) gauge Length over 0.050 in. (1.27 mm) diameter

Permissible Variations in Dimensions for Rolled, Swagged or Drawn Wire ASTM B365

Diameter inches (mm)	Tolerance plus or minus inches (mm)
0.010 to 0.020 excl. (0.254 to 0.508)	0.0005 (0.013)
0.020 to 0.030 excl. (0.508 to 0.762)	0.00075 (0.019)
0.030 to 0.060 excl. (0.762 to 1.524)	0.001 (0.025)
0.060 to 0.090 excl. (1.524 to 2.286)	0.0015 (0.038)
0.090 to 0.125 excl. (2.286 to 3.175)	0.002 (0.051)

Tantalum and Tantalum Alloy UNS Grade

ü R05200, unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both

ü R05400, unalloyed tantalum, powder-metallurgy consolidation.

ü R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.

ü R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.

ü R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt.

ü Other tantalum alloys also can be customized.

Tantalum Wire Ordering Information

Orders for material under this specification shall include the following information:

² Quantity (weight or number of pieces)

² UNS grade (See above Tantalum and Tantalum Alloy UNS Grade)

² Dimensions (Diameter and length)

² Additions to the specification and supplementary requirements, if required

Tantalum Wire Packing

Our Tantalum wire will be packed in a wooden case supported with soft materials to ensure that the products thus packed will not shift inside the cases.
