Technical Ceramics

New Ceramic Precursor-Heeger Materials Inc View larger

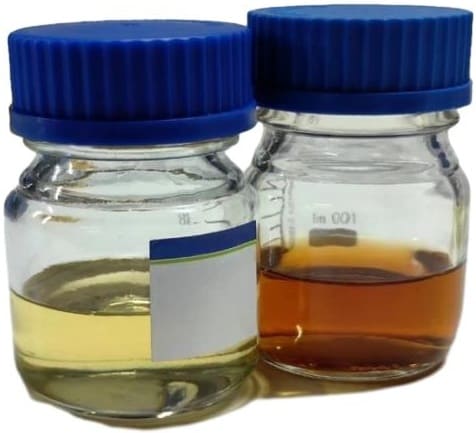

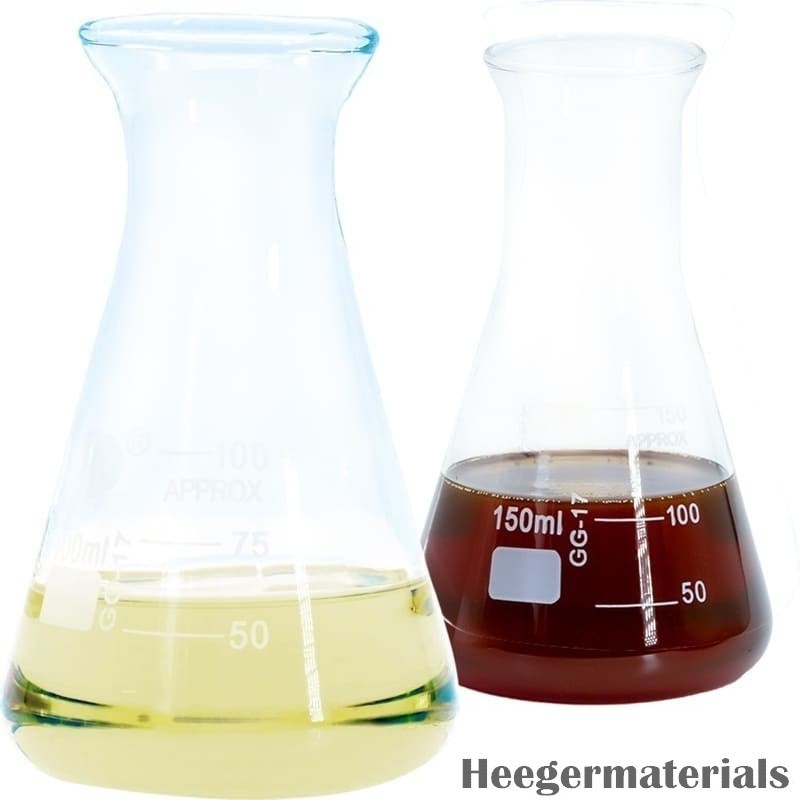

Ceramic Precursor

HM2866

New product

Ceramic Precursors are essential materials for fabricating advanced ceramics via polymer-derived ceramics (PDC) and precursor infiltration pyrolysis (PIP). Available in liquid or solid forms, they enable the production of high-performance ceramic matrices for composites, coatings, and 3D printing.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

MaterialsCeramic Precursor

More info

Ceramic Precursor materials serve as essential starting compounds for fabricating advanced ceramics through processes such as polymer-derived ceramics (PDC) and precursor infiltration pyrolysis (PIP). These precursors, available in liquid or solid forms, undergo curing and high-temperature pyrolysis to form high-performance ceramic matrices. They are widely used in ceramic matrix composites (CMCs), 3D printing, and high-temperature coatings. Multi-phase ceramic precursors, composed of elements such as silicon, zirconium, hafnium, and tantalum, enable precise control over composition and microstructure. With their ability to produce complex shapes with near-net forming techniques, they offer an efficient route for manufacturing durable, heat-resistant materials. Heeger Materials provides high-quality ceramic precursors for various high-performance applications.

Ceramic Precursor

Ceramic Precursor Stock Specifications

Product Name

Appearance

Parameters

Image/Structural Formula

Zirconium Carbide Precursor

Yellow, orange, or red transparent liquid

Viscosity: < 200 mPa·s Ceramic yield: ≥ 55% (solidified at 1000°C)

    Zirconium Carbide Precursor

Hafnium Carbide Precursor

Colorless or slightly yellow transparent liquid

Viscosity: < 200 mPa·s Ceramic yield: ≥ 55% (solidified at 1000°C)

     Hafnium Carbide Precursor

Silicon Zirconium Hafnium Precursor

Yellow, orange, or red transparent liquid

Viscosity: 50 ~ 200 mPa·s Ceramic yield: ≥ 55% (solidified at 1000°C)

    Silicon Zirconium Hafnium Precursor

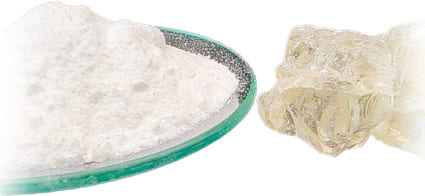

Polycarbosilane

White-yellow liquid

Viscosity: 25 ~ 300 mPa·s
Ceramic Yield: 65 ~ 85% (solidified at 1000°C)

Polycarbosilane

White-yellow solid

Ceramic yield: 50 ~ 55% (solidified at 1000°C)

White-yellow powder

Ceramic yield: 52% (solidified at 1000°C)

Polysilazane

Colorless or white liquid

Viscosity: 10 ~ 40 mPa·s 20 ~ 100 mPa·s 30000 ~ 100000 mPa·s Ceramic yield: 50 ~ 75% (solidified at 1000°C)

    Polysilazane

Polyborosilazane

Light yellow liquid

Viscosity: 800 ~ 2000 mPa·s 8000 ~ 20000 mPa·s 10000 ~ 20000 mPa·s Ceramic yield: 50 ~ 75% (solidified at 1000°C)

      Polyborosilazane

Zirconium N-Propanol Solution

Yellow liquid

74% in n-propanol, Zr: 20.7%

    Zirconium N-Propanol Solution

Hafnium(IV) N-Propoxide Solution

Yellow to orange liquid

81% in 1-propanol, Hf: 30%

    Hafnium(IV) N-Propoxide Solution

Zirconium N-Butanol Solution

Yellow liquid

87% in n-butanol, Zr: 20.7%

    Zirconium N-Butanol Solution

Hafnium N-Butoxide Solution

Yellow liquid

70% in n-butanol, Hf: 26%

    Hafnium N-Butoxide Solution

Dichlorodi-P-Cyclopentadienylhafnium

White or orange powder

98%

    Dichlorodi-P-Cyclopentadienylhafnium

Bis-Cyclopentadienyl Zirconium Dichloride

Orange powder

98%

    Bis-Cyclopentadienyl Zirconium Dichloride

Ceramic Precursor Key Features

  • Low viscosity
  • High ceramic yield
  • Relatively simple ceramicization process
  • Can design single-phase and multi-phase materials
  • Capable of curing through moisture at room temperature or heat curing

Ceramic Precursor Usage And Storage Recommendations

  • Processing Methods: Various techniques, such as brushing, coating, dipping, and spraying, can be selected based on actual requirements.
  • Dilution: It can be diluted with xylene or other solvents.
  • Curing Conditions: Crosslinking and curing can be achieved at 80-250°C, either in air or an inert atmosphere.
  • Storage: Keep in a dry, cool environment at temperatures below 25°C for 3-8 months. Refrigerated storage (4-10°C) is recommended for better preservation.
  • Usage After Opening: It is recommended to use the entire contents at once after opening. If not fully used, immediately ensure the container is tightly sealed.

Ceramic Precursor Applications

  • Ceramic Matrix Composites (CMCs): Used in the production of high-performance ceramic-based composite materials with excellent thermal and mechanical stability.
  • High-Temperature Adhesives: Provides strong bonding at extreme temperatures for aerospace and industrial applications.
  • Corrosion-Resistant Coatings: Forms protective ceramic layers to enhance chemical and oxidation resistance in harsh environments.
  • High-Temperature Oxidation-Resistant Ceramic Coatings: Offers superior thermal stability and oxidation resistance for aerospace and industrial components.
  • Thermosetting Resins: Used as precursors for polymer-derived ceramics in advanced manufacturing, including aerospace, semiconductors, electronics, and new energy vehicles.

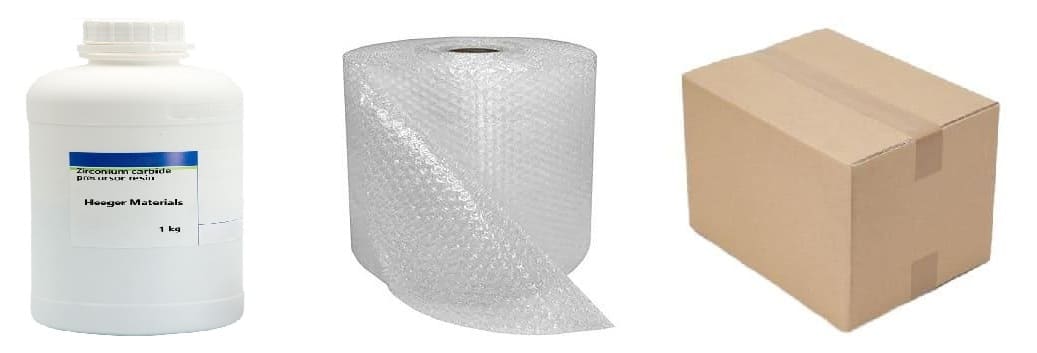

Ceramic Precursor Packing And Shipping

Ceramic Precursor should be stored in a sealed container in a dry, cool environment and kept away from moisture and air exposure for prolonged periods. HM provides secure packaging, including vacuum-sealed and airtight containers, ensuring safe storage and transportation. Custom packaging options are available based on specific requirements.

Ceramic Precursor Packing

Where to Buy Ceramic Precursor in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Technical Ceramics products including Ceramic Precursor, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
