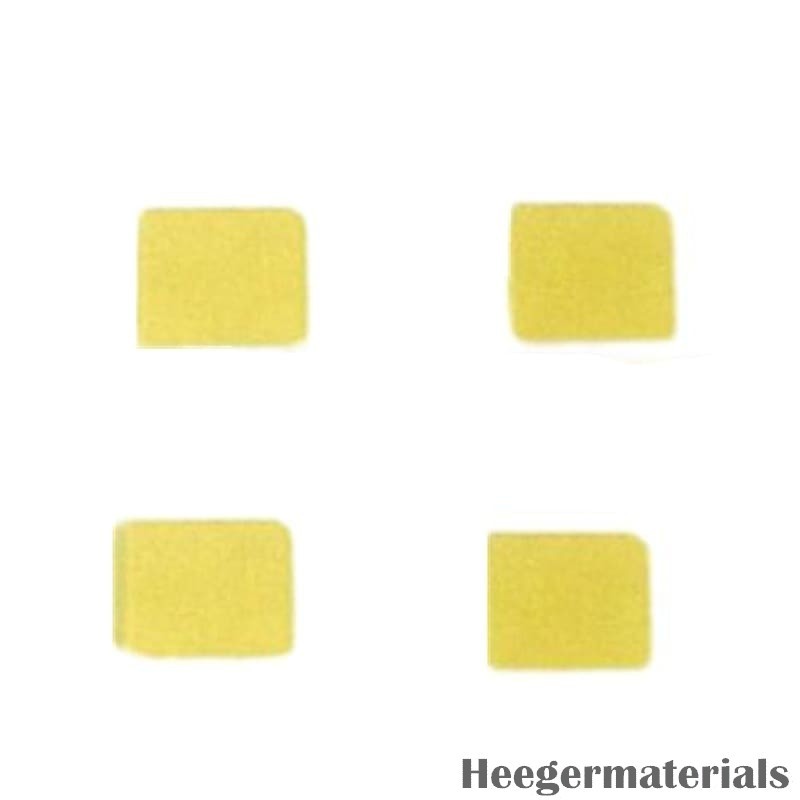

Samarium Scandate Single Crystal Substrate, SmScO3

Data sheet

Diameter	10×10×0.5 mm, 10×5×0.5 mm, 5×5×0.5 mm or customized
Thick	customized
Density	6.22 g/cm3
Materials	SmScO3
Melting Piont	2167 ℃

More info

Samarium Scandate Single Crystal Substrate is known for its outstanding compatibility with perovskite-type superconducting and ferroelectric materials. With excellent lattice matching properties, it serves as a reliable base for epitaxial growth, especially in the research and manufacturing of advanced oxide films. This substrate promotes high-quality thin film formation with minimal defects, making it an ideal choice for complex oxide research, multiferroic device fabrication, and dielectric material studies. Heeger Materials provides high-quality Samarium Scandate Single Crystal Substrate with stable performance and support for custom specifications.

Samarium Scandate Single Crystal Substrate, SmScO3

Samarium Scandate Single Crystal Substrate Properties

Property	Value
Crystal System	Orthorhombic
Lattice Constants	a = 5.524 Å b = 5.750 Å c = 7.953 Å
Purity	99.99%
Density	6.22 g/cm³
Hardness	~6 (Mohs scale)
Melting Point	2400 ℃

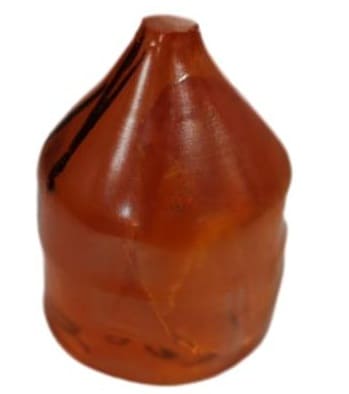

Growth Method	Czochralski Method

Samarium Scandate Single Crystal Substrate Specifications

Typical Crystal Orientations	(110), (100), (001)
Orientation Tolerance	Within ±0.5°
Standard Dimensions	10×10×0.5 mm, 10×5×0.5 mm, 5×5×0.5 mm
Polishing Type	Single-sided, Double-sided
Polished Surface Roughness	Ra < 5 Å (within a 5×5 μm area)
Customization	Sizes and orientations available upon request

Samarium Scandate Single Crystal Substrate Applications

Ferroelectric Thin Films: Used as a substrate for depositing high-quality ferroelectric materials due to their lattice compatibility and thermal stability.
Multiferroic Material Research: Supports the growth of complex oxide films in studies involving materials that exhibit both ferroelectricity and magnetism.
Epitaxial Growth of Perovskite Oxides: Enables precise epitaxial growth of perovskite-structured superconductors and functional oxides.
Dielectric Device Fabrication: Applied in the development of tunable dielectric components used in high-frequency electronics.
Advanced Sensor Development: Serves as a base material in sensors requiring stable, low-defect oxide film integration for high-sensitivity detection.

Samarium Scandate Single Crystal Substrate Packing And Shipping

Samarium Scandate Single Crystal Substrate will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures that the product arrives in perfect condition, maintaining its high-quality standards throughout the delivery process.

Where to Buy Samarium Scandate Single Crystal Substrate in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Wafers ＆ Substrates products including Samarium Scandate Single Crystal Substrate, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
